InTANK Series







iR2024: Efficient Solution for High-Speed, Secure Data Storage Features



Features



1. Flexible Storage Options with SSD and hard drive Compatibility.



2. Comprehensive Support for SATA 6G with RAID 0 and RAID 1 Configurations.



3. STATUSGAUARD GUI and drive S.M.A.R.T monitoring (for Windows only).



4. RAID Configuration Displayed via LCD Status Screen.



5. Drives monitoring with LED light indicator.



6. Tray with KeyLcok protection.



7. Hot-swappable and plug-and-play for easy replacement of drives.

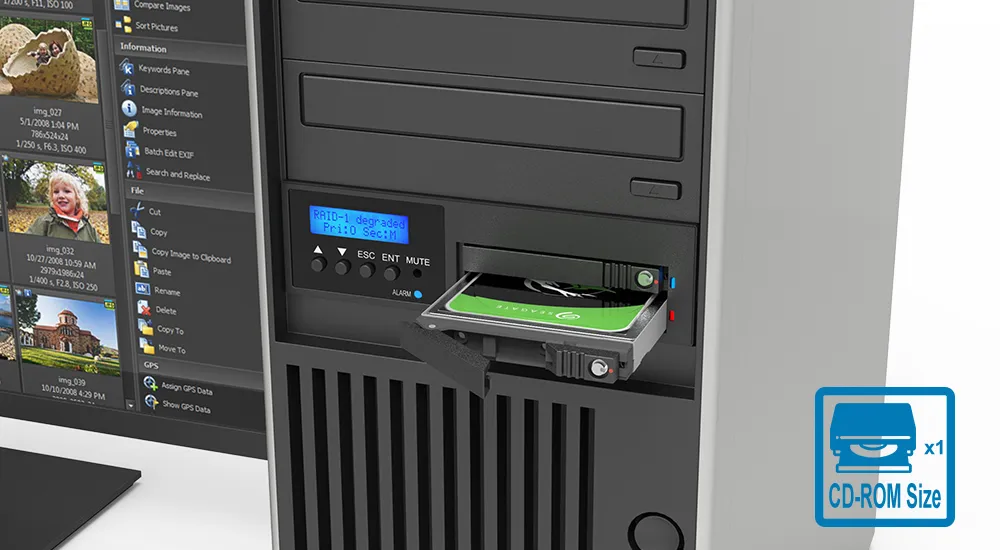

8. Compact Size: fits perfectly into a 5.25-inch CD-ROM bay.



9. Versatility: for server, IPC, or workstation installation.



10. Optimal heat management with MCU controlled silent fan.



11. Advanced Overheat alarm buzzer.



Benefits



1. RAID 1 supports Data Redundancy and Protection.



2. RAID 0 supports Increased Performance.



3. Versatile Storage Options supports SATA 3 6G SSD and Hard disk.



4. STATUSGAUARD GUI Eases of Management.



5. KeyLock feature provides Enhanced Security.



6. Excellent Heat Management with MCU-controlled silent fan and overheat alarm buzzer.



7. Real-Time Drive S,M.A.R.T. Monitoring.



8. Efficient Space Utilization with compact design fit into one CD-ROM Bay.





Your Compact and Efficient Solution for High-Speed, Secure Data Storage and Management


The iR2024 Internal RAID Device - a comprehensive, efficient, and versatile solution for your data storage and management needs. Designed with advanced features, the iR2024 is a reliable component for any server, IPC, or workstation setup.





Flexible Storage Options with SSD or hard drive Compatibility



The iR2024 has been thoroughly designed to support either two 2.5-inch SATA 6.0 Gb/s SSDs or hard drives. This versatile accommodation enables a diverse range of high-speed storage possibilities, making it a perfect match for the demands of today's high-performance computing scenarios.

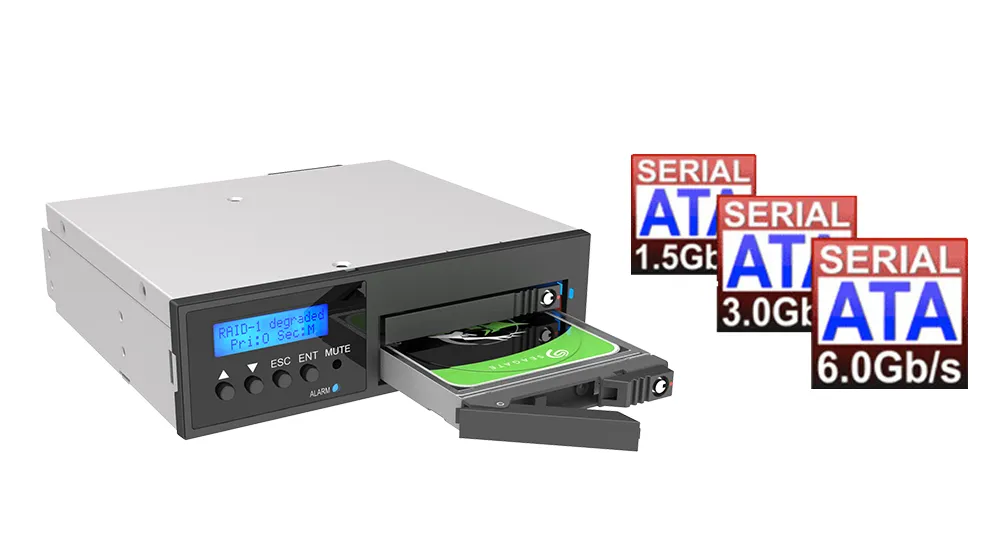

Support SATA 6G with RAID 0 and RAID 1



The iR2024 offers comprehensive support for SATA 6G, integrating seamlessly with the latest generation of high-speed data interfaces. This robust support ensures you can leverage the speed and efficiency of SATA 6G, significantly enhancing your system's overall data transfer rates and performance. Furthermore, the iR2024 supports RAID 0 and RAID 1 configurations. With RAID 0, also known as striping, you can enjoy increased data throughput by spreading data across multiple drives. Conversely, RAID 1, known as mirroring, duplicates your data across two drives, providing an immediate backup and ensuring data integrity and reliability. The comprehensive support for both these RAID configurations, combined with SATA 6G compatibility, make the iR2024 a highly adaptable and powerful storage solution that caters to a broad spectrum of user needs.

Comprehensive Support for SATA 6G with RAID 0 and RAID 1 Configurations



The iR2024 offers comprehensive support for SATA 6G, integrating seamlessly with the latest generation of high-speed data interfaces. This robust support ensures you can leverage the speed and efficiency of SATA 6G, significantly enhancing your system's overall data transfer rates and performance. Furthermore, the iR2024 supports RAID 0 and RAID 1 configurations. With RAID 0, also known as striping, you can enjoy increased data throughput by spreading data across multiple drives. Conversely, RAID 1, known as mirroring, duplicates your data across two drives, providing an immediate backup and ensuring data integrity and reliability. The comprehensive support for both these RAID configurations, combined with SATA 6G compatibility, make the iR2024 a highly adaptable and powerful storage solution that caters to a broad spectrum of user needs.

STATUSGAUARD GUI and drive S.M.A.R.T monitoring



The iR2024 Internal RAID Device offers windows base RAIDON STATUSGAUARD Graphic User Interface (GUI). This user-friendly platform simplifies RAID monitoring, and management, making it an accessible and efficient tool even for those not experienced with RAID configurations.

Additionally, the iR2024 supports Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) for drives. This technology enables the real-time tracking of key indicators of drive reliability. With S.M.A.R.T., potential drive failures can be anticipated and prevented, providing an added layer of data security and peace of mind.

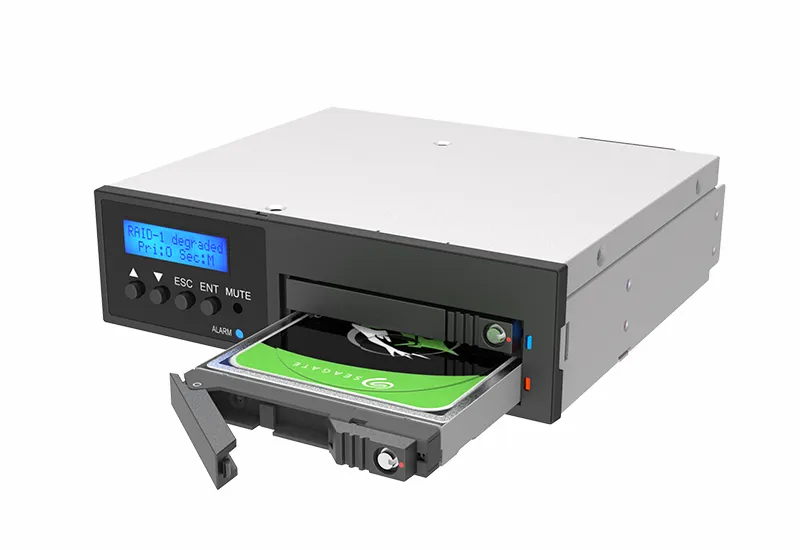

Tray with KeyLock Protection



To enhance the physical security of your drives, the iR2024 is designed with a tray system that includes a KeyLock feature. This prevents unauthorized access and removal of your valuable drives.

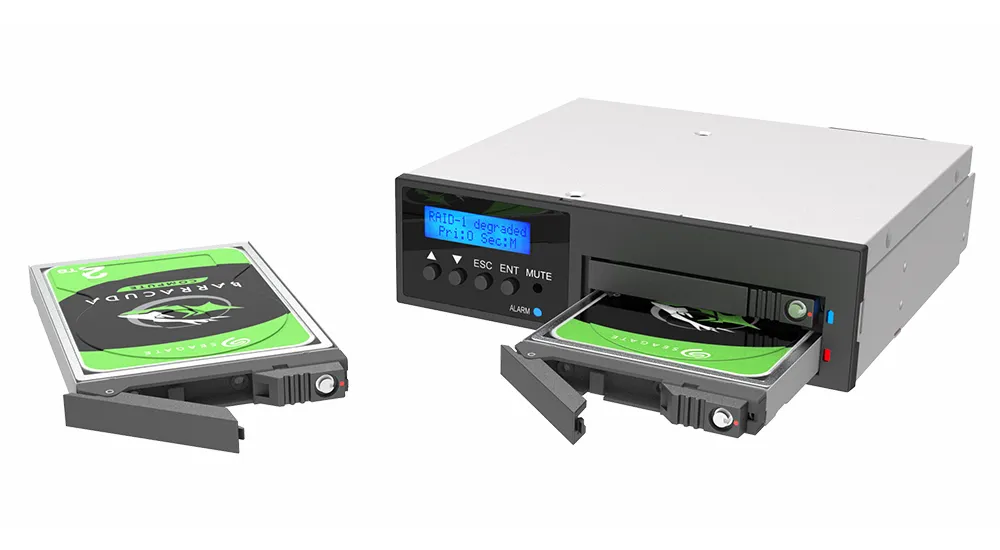

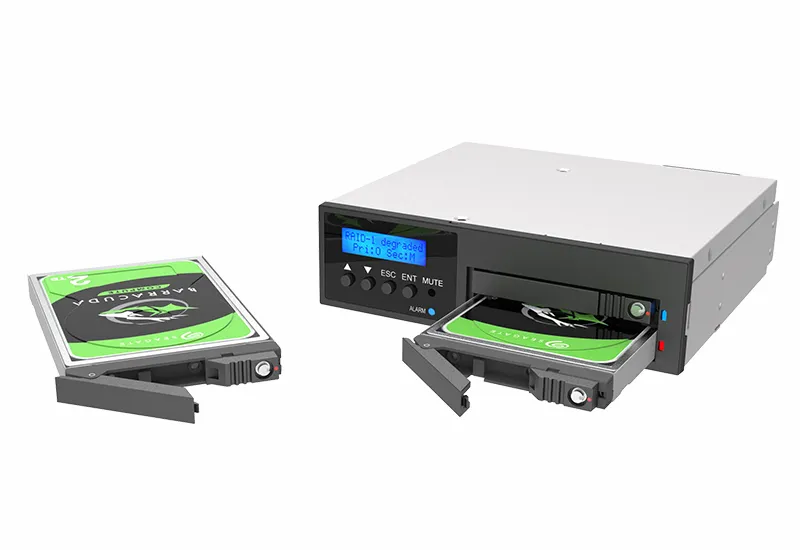

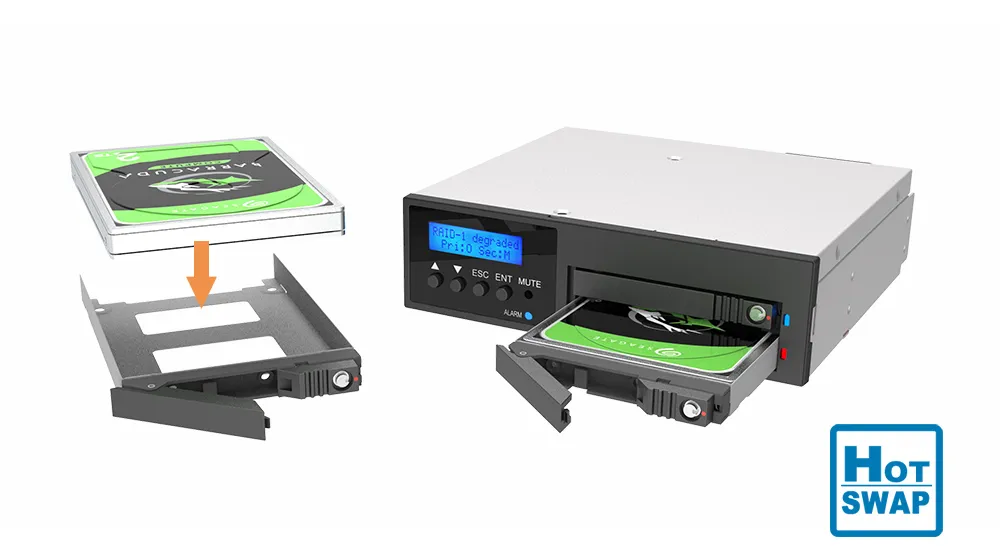

Hot-swappable and plug-and-play for easy replacement of drives



One of the standout features of the iR2024 Compact RAID Enclosure is its hot-swappable and plug-and-play capability. This user-friendly design allows for effortless replacement and upgrading of drives, minimizing downtime. If a drive fails or you simply want to upgrade your storage capacity, the hot-swap feature lets you replace the drive without having to power down the system. Additionally, the plug-and-play functionality ensures the new drive is immediately recognized and operational, making the whole process seamless and convenient. This aspect truly embodies the iR2024's commitment to blending advanced technology with superior user experience.

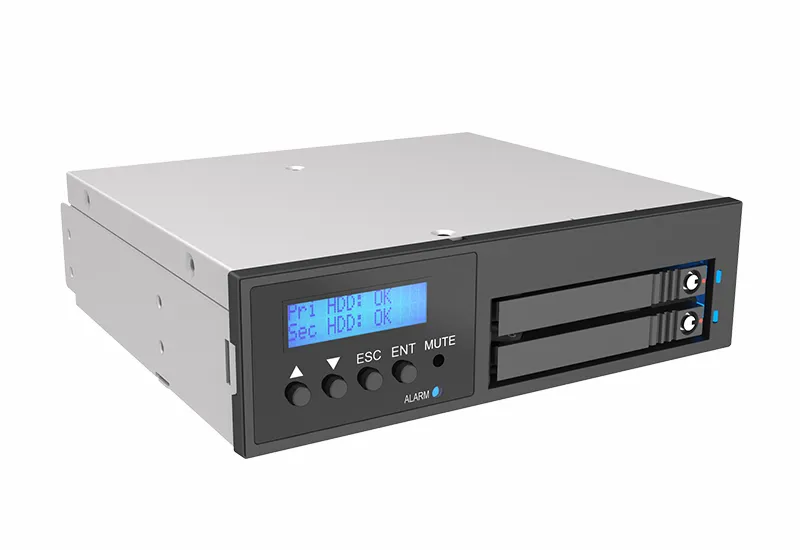

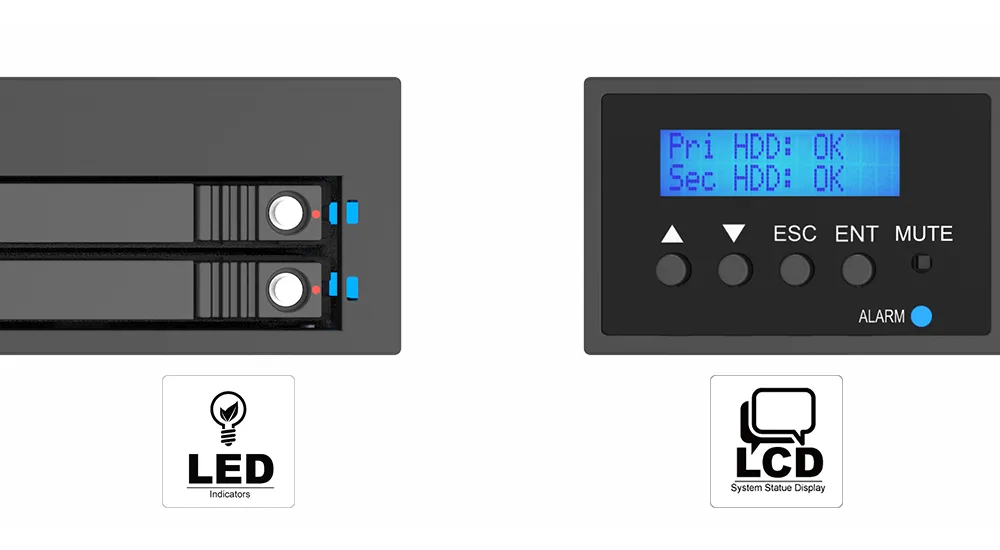

RAID Configuration Displayed via LCD Status Screen



The iR2024 comes equipped with a state-of-the-art LCD status screen that dynamically displays your RAID configuration settings. This user-friendly feature allows you to have an at-a-glance view of your storage arrangement, providing real-time updates on your RAID settings and data management status. The clear and concise display ensures that you can quickly understand and manage your system's performance and storage parameters, effectively reducing the complexity of data management. The LCD screen also makes it easy to adjust your RAID configurations, allowing for a seamless transition between different storage preferences. With the iR2024's LCD status screen, staying informed and in control of your storage system has never been more straightforward.



LED Light indicators



The iR2024 features a separate LED display for each SSD or hard disk, presenting data access status or the condition of the SSD or hard disk concisely. This allows users to stay informed about the overall status of the iR2024 at any time.

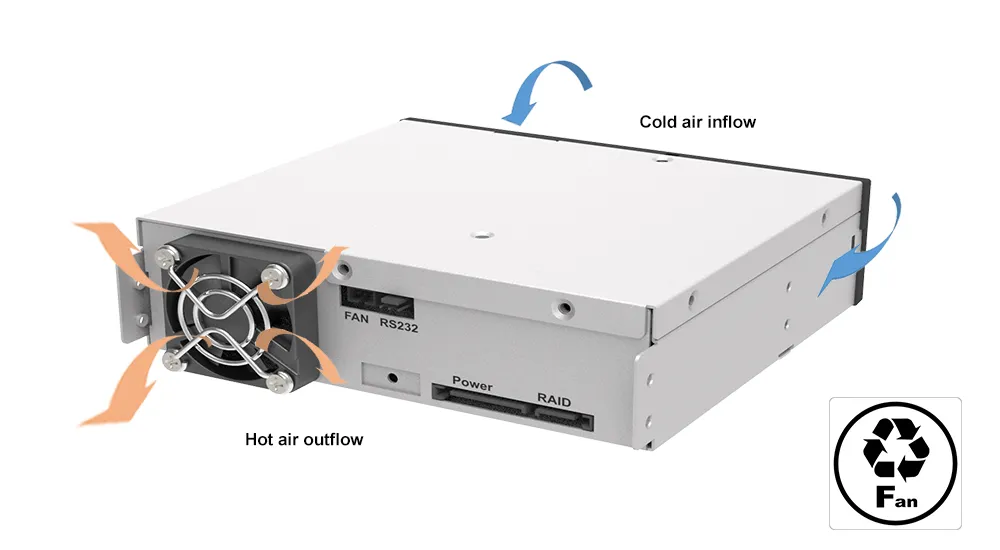

Optimal heat management with MCU controlled silent fan



The iR2024 incorporates a Microcontroller Unit (MCU) controlled heat dissipation system. The MCU intelligently operates a 4-cm silent fan to maintain optimal temperature for your drives, extending their lifespan and ensuring consistent performance.



Experience reliable, secure, and efficient data management with the iR2024 Internal RAID Device - a tool engineered for the modern digital world.



Overheat alarm buzzer



The iR2024 Compact RAID Enclosure is built with an intelligent overheat alarm buzzer to ensure the safety and longevity of your drives. This advanced feature continuously monitors the temperature of your storage devices. In the event of a significant rise in temperature that surpasses the safe operating limit, the alarm buzzer will sound, alerting users to potential overheating issues. This immediate auditory alert allows for swift corrective action, which could involve ramping up the cooling system or shutting down to prevent any potential damage. The inclusion of this overheat alarm buzzer is a testament to iR2024's commitment to proactive protection of your valuable data and hardware.

The iR2024 Internal RAID Device can be utilized across various applications:



1. Data Centers: The iR2024's high-speed data access and redundant data protection make it ideal for deployment in large-scale data centers where reliable and efficient data storage and management is critical.



2. High-Performance Computing: For systems running complex simulations or data-intensive tasks, the iR2024 can deliver the performance boost and data security required.



3. Network Attached Storage (NAS) Systems: By integrating iR2024 into NAS systems, businesses and individuals can benefit from improved data access speeds and increased redundancy.



4. Industrial PCs (IPCs): In industries like manufacturing, healthcare, or Semiconductor automation, IPCs can utilize the iR2024 for efficient, secure data handling and storage.

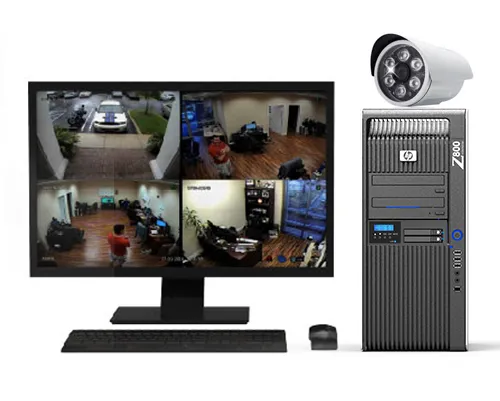

5. Surveillance Systems: Security systems that generate large volumes of video data can leverage the iR2024's storage capabilities, ensuring quick data retrieval and secure backups with its RAID 1 function.



6. Media Editing and Production: With high-speed data access and secure storage, the iR2024 can be a vital tool for professionals working with large media files for editing, rendering, or production.



7. Server Environments: In various server implementations, the iR2024 can provide essential data management and backup, along with performance enhancement.



8. Research and Development: For institutions generating and working with large volumes of data, the iR2024 can ensure reliable, high-speed storage and safeguard against data loss.

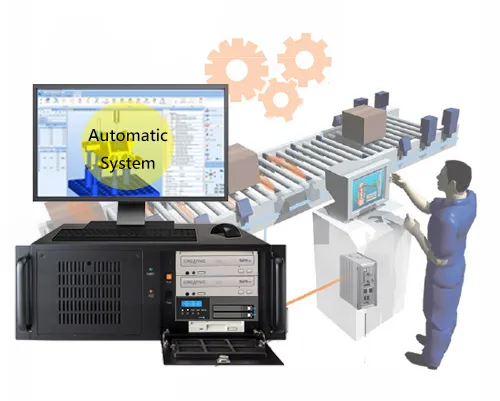

The iR2024 Internal RAID Device, with its advanced features and compact size, makes it an excellent choice for Industrial PC (IPC) and automation applications:





The iR2024 can be an excellent fit for Industrial PC (IPC) automation applications:

1. Process Automation: The iR2024 can serve as a reliable data storage and management solution in various process automation scenarios. Whether it's for storing process data, operational logs, or programming and controlling automated machinery, the iR2024's high-speed data access and redundant data protection are invaluable.



2. Manufacturing and Assembly Lines: For automated manufacturing and assembly lines, the iR2024 can be used to store and manage machine data, performance metrics, quality control data, and more. Its RAID 1 function ensures data safety, and RAID 0 configuration offers improved data access speed, vital for real-time control and monitoring.



3. Robotics Control Systems: In robotics applications, where large volumes of data are generated and need to be stored securely and accessed swiftly, the iR2024 is an ideal choice. It can be used to store control algorithms, machine learning models, sensor data, and operational logs.



4. Data Acquisition Systems: In industrial applications where real-time data acquisition and processing are crucial, such as in predictive maintenance or quality control, the iR2024 provides high-speed data access and secure data storage.



5. SCADA Systems: The iR2024 can be an essential component of Supervisory Control and Data Acquisition (SCADA) systems, used for storing operational data, logs, and control parameters. The device's RAID functions ensure that the stored data is always secure and readily available.



6. Industrial IoT (IIoT) Devices: For IIoT applications, the iR2024 can be used to store and manage data collected from a multitude of IoT sensors and devices. Its high-speed data access and redundancy features make it an optimal choice for these data-intensive environments.



By deploying the iR2024 in IPC and automation environments, industries can enjoy reliable, secure, and high-speed data management, ensuring efficient operations and aiding in informed decision-making.

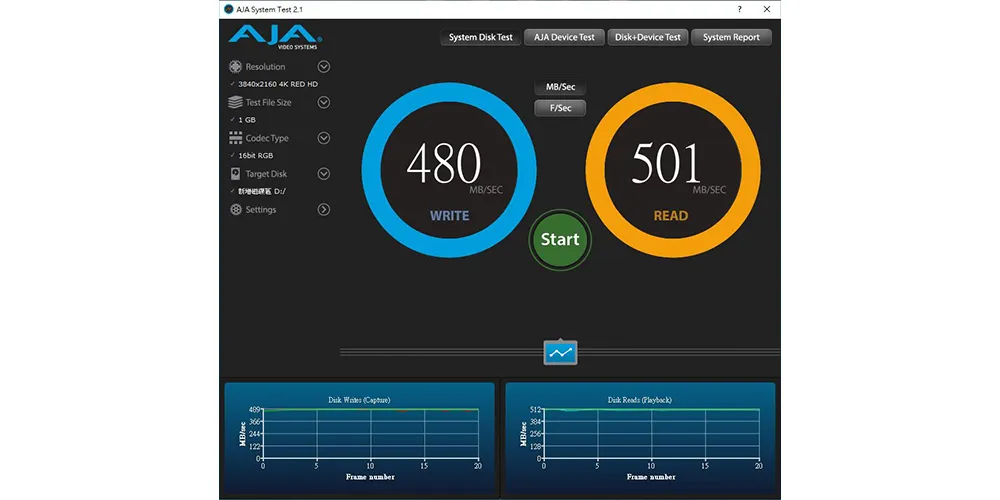

Performance test result for reference. The test result will vary depend on the test environment.

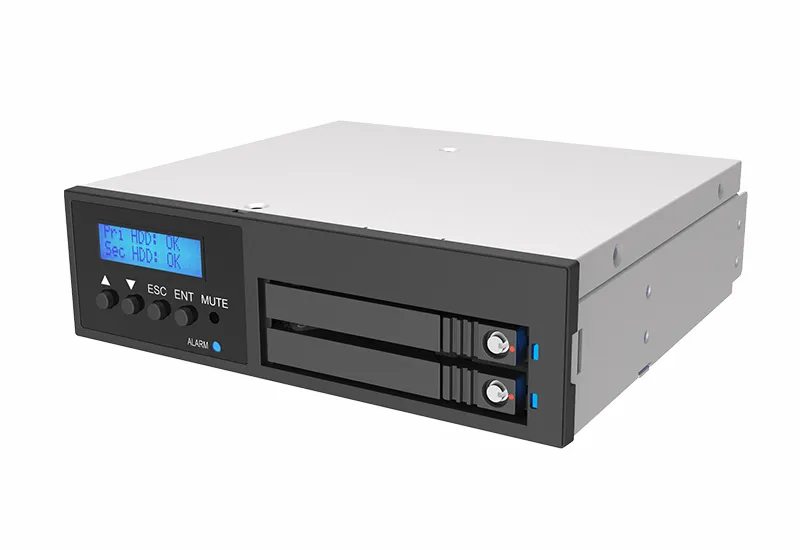

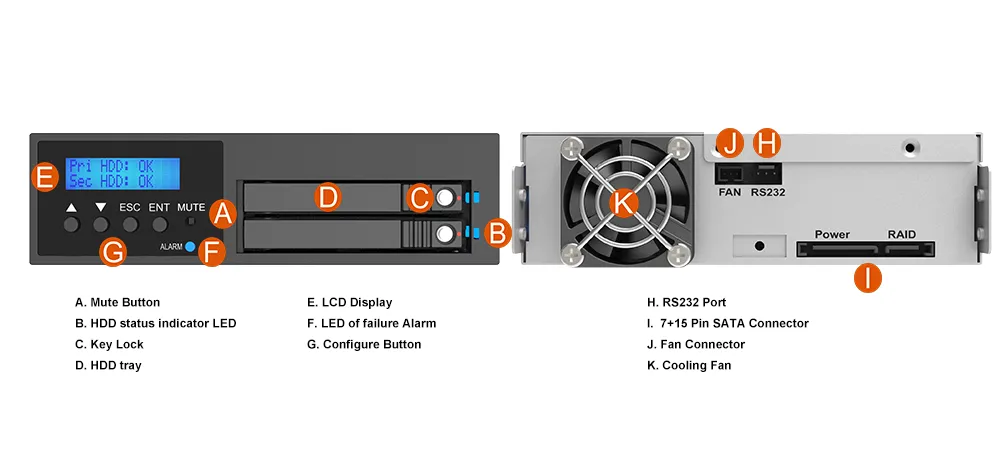

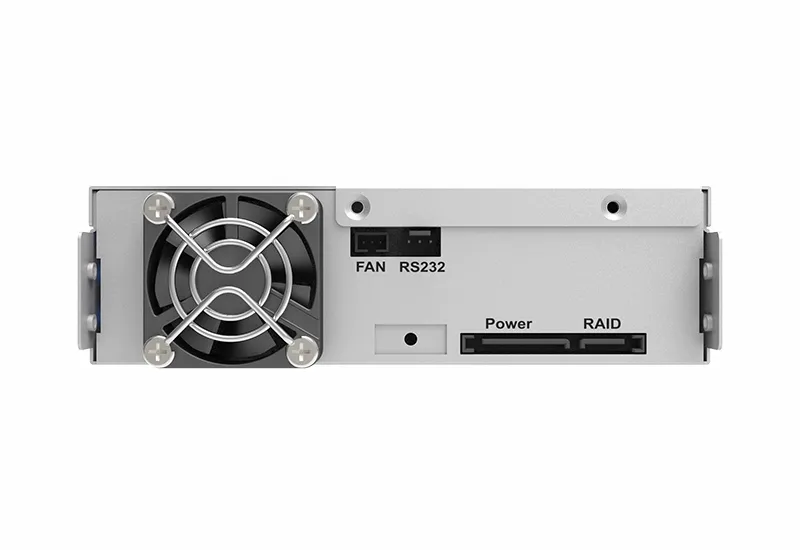

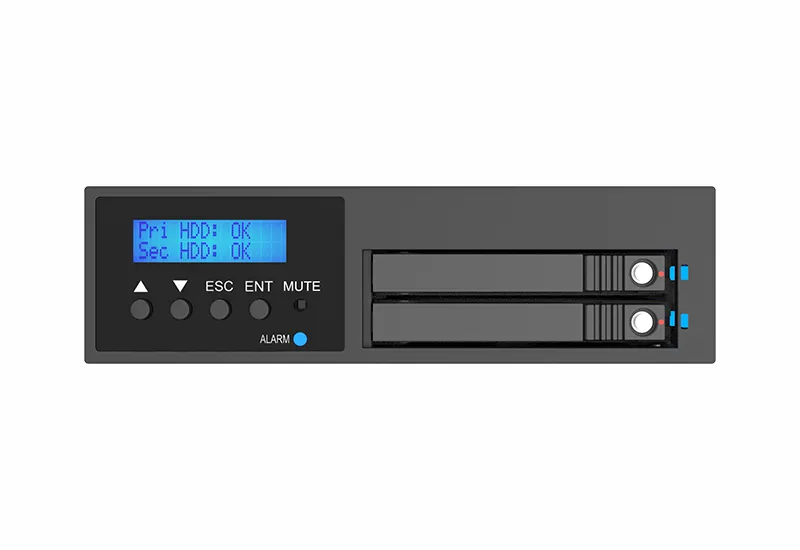

Product View

Specification



Model No iR2024
Interfaces 1 x SATA III (6Gbps) Ports
Compatible Drives 2 x 2.5" SATA III (6Gbps) HDD/SSD (9.5mm)
Storage Level RAID 1 , 0
System Monitoring Fan Failure / Overheat
Operating System Windows, Linux
Function Control
Interface
GUI (Windows Only)
Cooling System 4 cm Low noise fan
Electrical and
Operating
Requirements
* Line voltage: 12V + 5V DC
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% non-condensing
Dimension & Weight 148(W)x 43(H) x 140(L) mm
Product Code iR2024
EAN:4713227440783
UPC:884826505341

Carton 10 pcs per carton
Package Accessories *iR2024
*SATA Cable
*Accessory Kit-for Tray
*Accessory Kit-for Case
*Quick installation guide



Related Products



 iR2022

iR2023

IR2623-S3









>>>> More External RAID Storage

iR2024 Download

Product
Datasheet
QM
UM
CE & FCC
other
iR2024
Image Download GUI Software for Windows

iR2024 Question & Answer

  • Q1The correct operations to replace the damaged disk under RAID 1 mode.
  • Q2Upgrading Your System: Integrating iR2024 with Legacy RAID 1 Hard Drives.
  • Q3Upgrading from a Legacy RAID Device to iR2024 with New Hard Drives.
  • Q4What causes RAIDbox to be unable to recognize my non-brand-new hard drive?


iR2024 HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
iR2024Hitachi2.5" HDD HTS721010A9E6301TB
iR2024Hitachi2.5" HDD HTS545050B9A300500GB
iR2024Seagate2.5" HDD ST9160314AS160GB
iR2024Toshiba2.5" HDD MQ01ABF050500GB
iR2024Toshiba2.5" HDD MQ01ACF050500GB
iR2024Toshiba2.5" HDD MQ01ABD1001TB
iR2024WD2.5" HDD WD800BEVS-00LAT080GB
iR2024ADATA2.5" SSD ASX900S3-64GM64GB
iR2024ADATA2.5" SSDUltimate SU800256GB
iR2024Intel2.5" SSD SSDSA2M040G2GC40GB
iR2024Intel2.5" SSD SSD530120GB
iR2024Kingston2.5" SSD 300V120GB
iR2024Kingston2.5" SSD SHSS37A240GB
iR2024Samsung2.5" SSD 850 Pro128GB
iR2024SanDisk2.5" SSD SDSSDA-240G240GB
iR2024Innodisk2.5" SSD 3MG2-P128GB
iR2024WD2.5" SSD WDS200T2B0A2TB
iR2024Seagate2.5" SSD XA480LE10063480GB
iR2024Seagate2.5" SSD ZA960NM10001960GB
iR2024Samsung2.5" SSD MZ-76E250BW250GB
iR2024Samsung2.5" SSD MZ-76E500BW 500GB
iR2024Samsung2.5" SSD MZ-76E1T0BW 1TB
iR2024Samsung2.5" SSD MZ-76E2T0BW2TB
iR2024Samsung2.5" SSD MZ-76E4T0BW4TB
iR2024EmBestor2.5" SSD EC3S2T-512GCJDYM44512GB
iR2024Pioneer2.5" SSDAPS-SL3NAPS-SL3N-1T1TB
