InTANK Series





iR2025: Efficient Solution for High-Speed, Secure Data Storage



Features


1. Flexible Storage Options with SSD and hard drive Compatibility.



2. Comprehensive Support for SATA 6G with RAID 0 and RAID 1 configuration.



3. STATUSGUARD GUI and drive S.M.A.R.T monitoring (for Windows only).



4. RAID Configuration Displayed via LCD Status Screen.



5. Drives monitoring with LED light indicator.



6. Tray with KeyLcok protection.



7. Hot-swappable and plug-and-play for easy replacement of drives.



8. Compact Size: fits perfectly into a 5.25-inch CD-ROM bay.



9. Versatility: for server, IPC, or workstation installation.



10. Optimal heat management with MCU controlled silent fan.



11. Advanced Overheat alarm buzzer.



12. Rugged Metal constructed.



Benefits


1. Space Efficiency: Compact form factor saves valuable workspace.



2. Versatility: Supports RAID 1 and RAID 0 modes, and both SATA hard disks and SSDs.



3. Reliability: RAID 1 mode and hot-swappable feature for continuous operation.



4. Ease of Use: User-friendly with RAIDON STATUSGUARD GUI software and front panel switch.



5. Data Security: Key lock feature protects against unauthorized access.



6. Effective Cooling: Silent fan extends the lifespan of your drives.



7. Durability: Robust metal construction for long-lasting performance.



8. Real-Time Monitoring: LED indicators for instant drive status checks.



9. Efficient Data Management: Independent 3.5-inch bay allows precise, targeted data handling.



Your Compact and Efficient Solution for High-Speed, Secure Data Storage and Management



The iR2025 Internal RAID Device - a comprehensive, efficient, and versatile solution for your data storage and management needs. Designed with advanced features, the iR2025 is a reliable component for any server, IPC, or workstation setup.



Flexible storage options



The iR2025 offers flexible storage options, supporting both SSDs and hard drives. This flexibility allows users to choose the storage medium that best fits their needs, whether it's the speed and durability of an SSD or the cost-effective capacity of a traditional hard drive. With the iR2025, you have the freedom to customize your storage solution to meet your specific requirements and preferences.

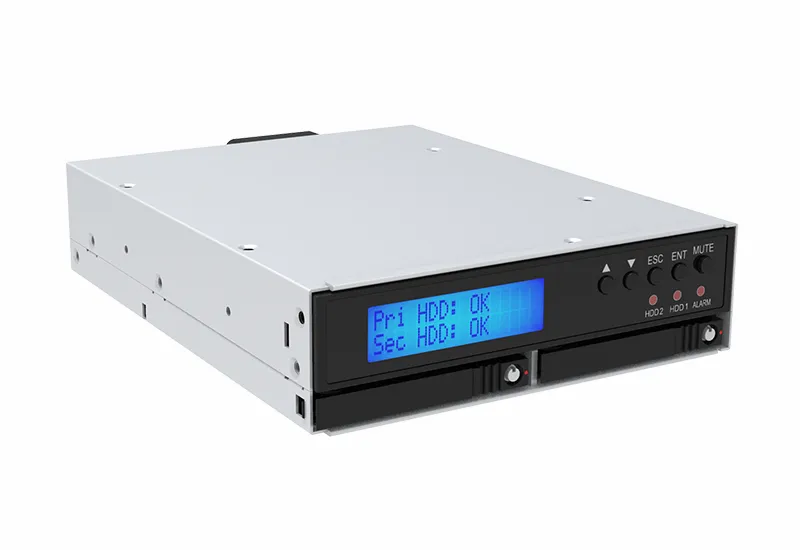

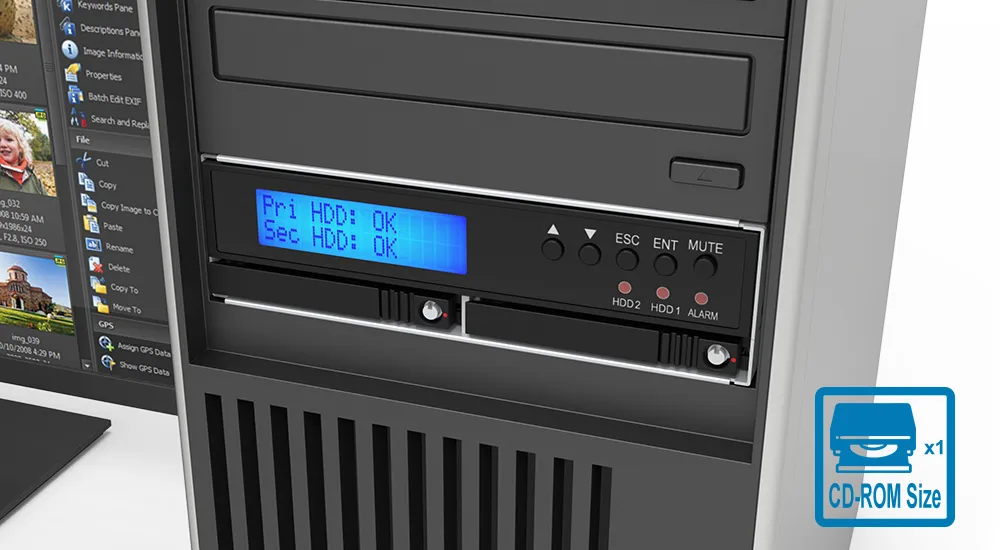

Compact Size



Despite its robust features, the iR2025 is compact enough to fit perfectly into a 5.25-inch CD-ROM bay. This makes it a space-efficient addition to your hardware setup.

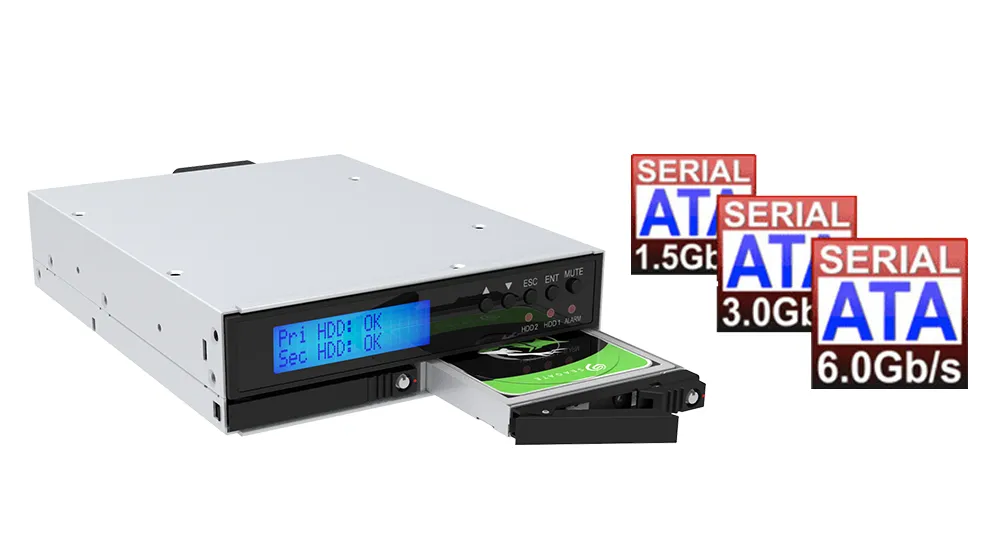

High-speed Transmission with SATA 6G Bandwidth



The iR2025 is adeptly designed to maintain the robust SATA 6G speed, even when executing RAID functions. This ensures that users benefit from consistently swift data transfers and reduced latency, regardless of their RAID configurations. By preserving the 6G bandwidth during RAID operations, the device solidifies its commitment to delivering uninterrupted, top-tier storage performance.

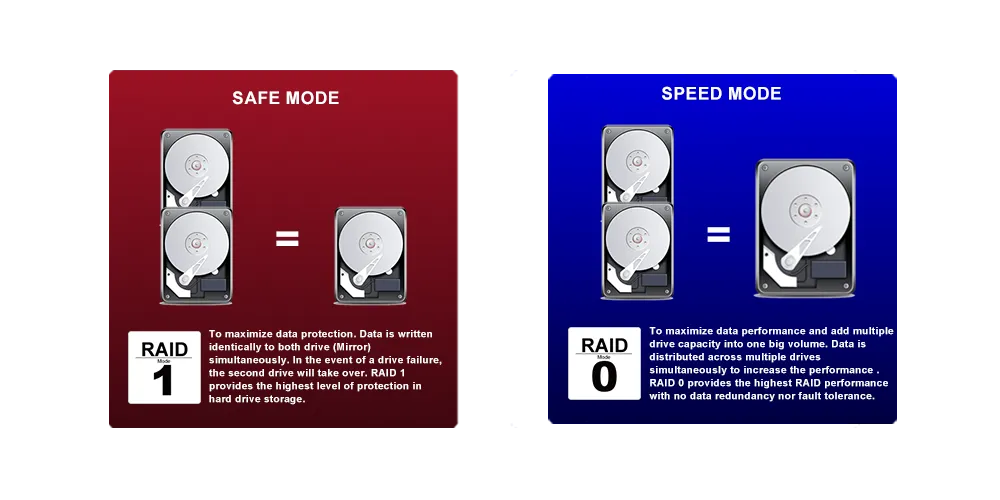

Choose high reliability safe mode or high performance-accelerated mode



The iR2025 can have both 2 x 2.5” SATA III hard disk at the same time, and provide RAID 0 and RAID 1 function. Using RAID 0 integration function can improve data read and write performance, or using RAID 1 mirroring function can prevent system downtime caused by a single hard drive failure.



Understand the transmission performance of iR2025, and choose the hard disk application mode according to your needs.

RAID 1 mode is the most secure, and it is the most suitable storage mode for areas that require the high data security.

RAID 0 mode demands transmission speed, that can speed up data access speed, but there is no security at all.

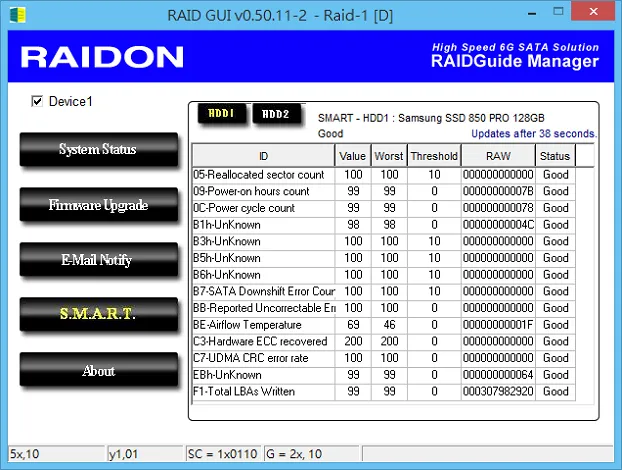

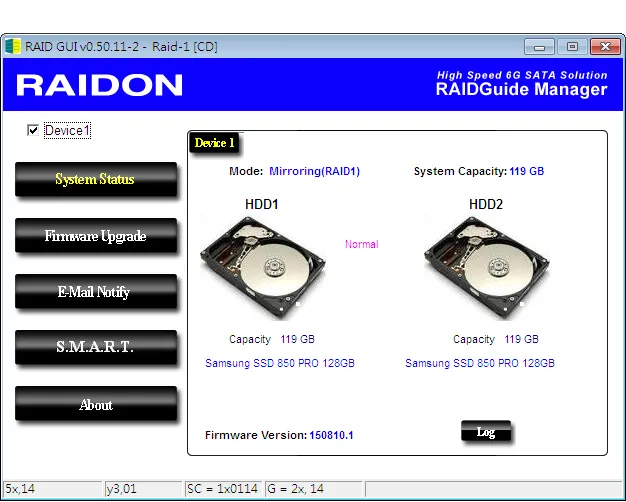

STATUSGUARD GUI and drive S.M.A.R.T monitoring



The iR2025 Internal RAID Device offers windows base RIADON STATUSGUARD Graphic User Interface (GUI). This user-friendly platform simplifies RAID monitoring, and management, making it an accessible and efficient tool even for those not experienced with RAID configurations.





Additionally, the iR2025 supports Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) for drives. This technology enables the real-time tracking of key indicators of drive reliability. With S.M.A.R.T., potential drive failures can be anticipated and prevented, providing an added layer of data security and peace of mind.

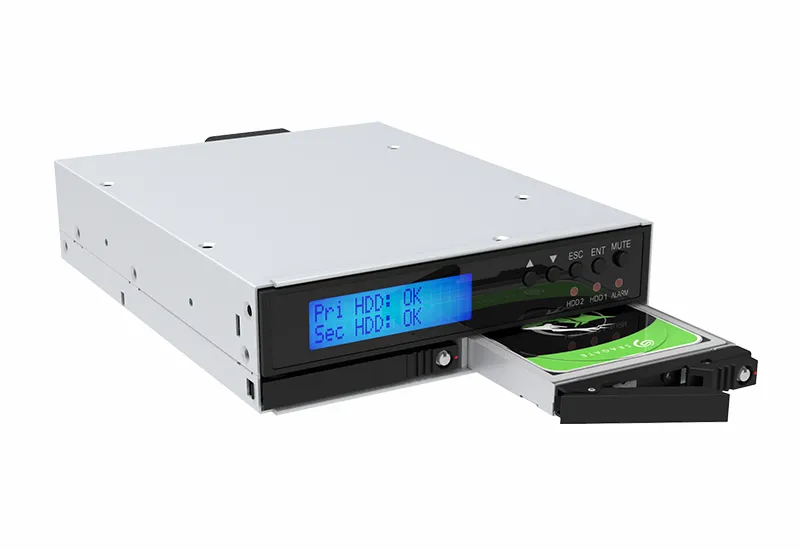

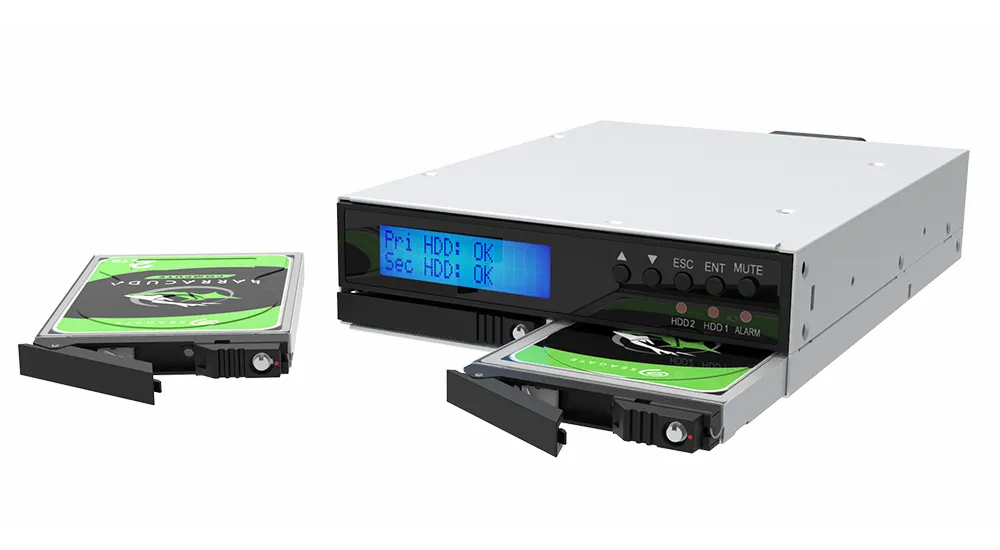

Tray with KeyLock Protection



To enhance the physical security of your drives, the iR2025 is designed with a tray system that includes a KeyLock feature. This prevents unauthorized access and removal of your valuable drives.

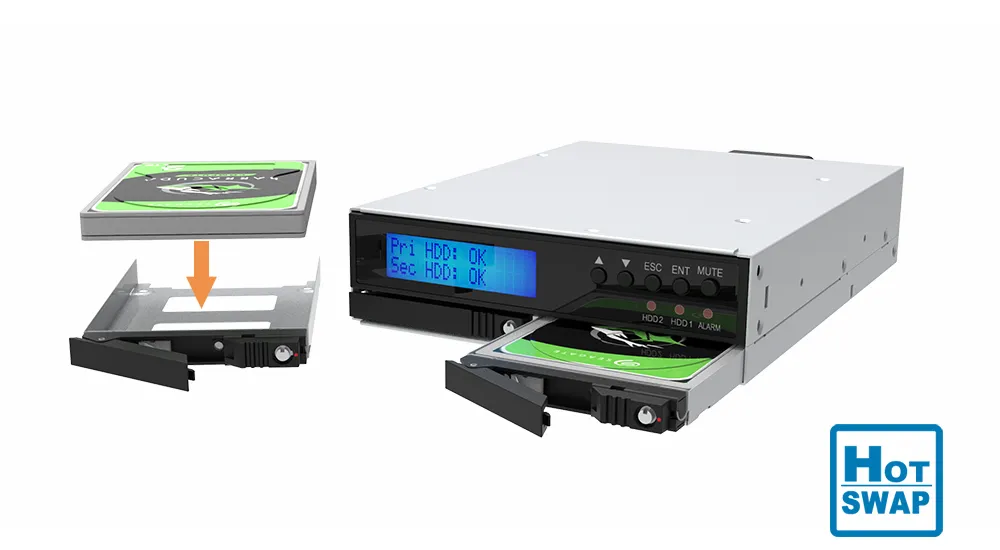

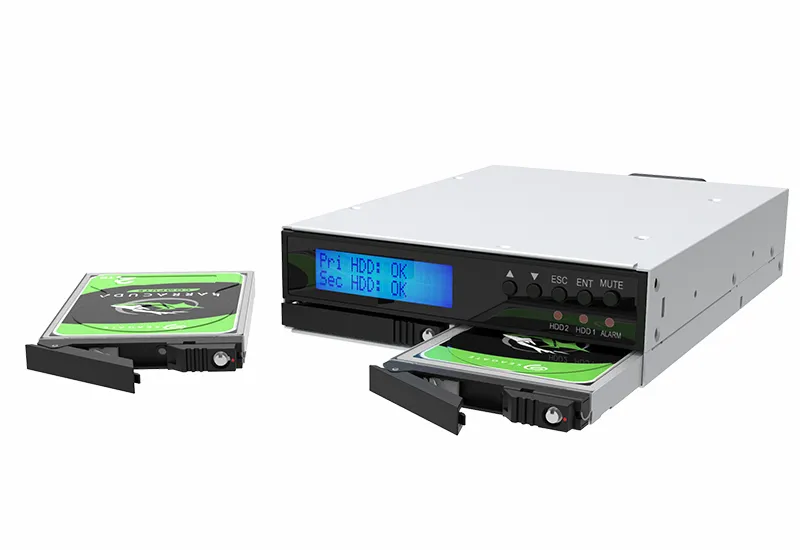

Hot-swappable and plug-and-play



The iR2025 offers easy drive replacement and installation. Users can swap drives without powering off the system, thanks to its hot-swappability. They can also plug in new drives and use them right away, without any hassle. The iR2025 simplifies drive maintenance and upgrade with its hot-swappable and plug-and-play features.

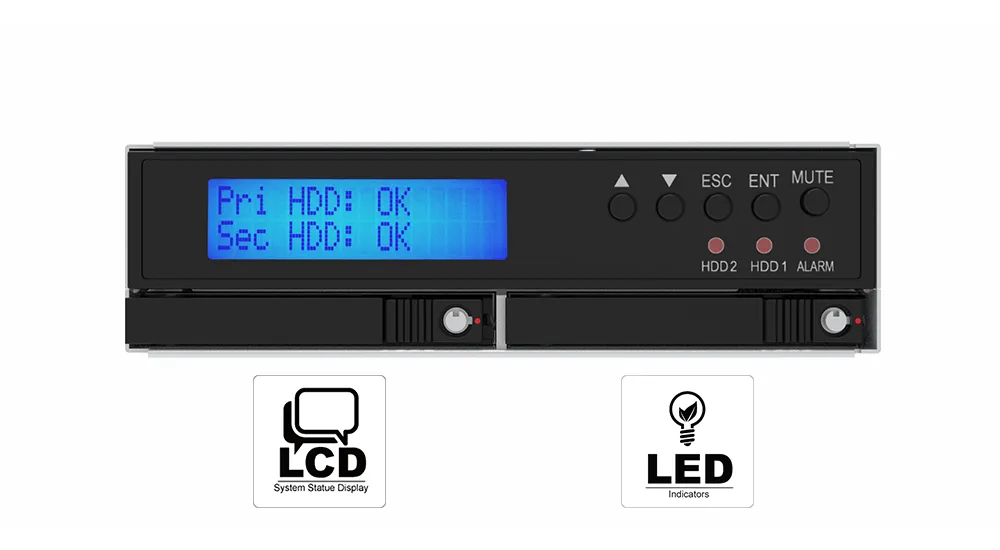

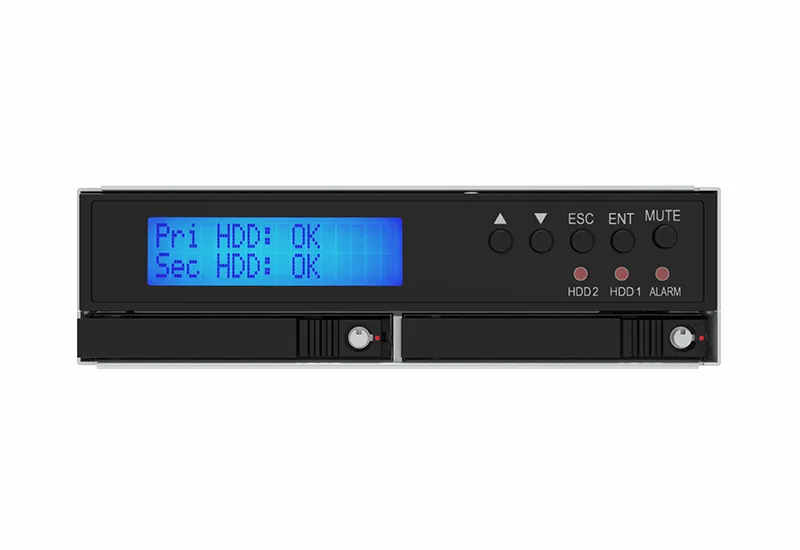

LCD Display illustrate RAID setting status



The iR2025 Compact RAID Enclosure features an intuitive LCD status screen designed to display your RAID configuration in real-time. This critical feature allows users to keep a close eye on their current RAID setup, offering immediate visual feedback on the operational status of their drives. Whether you're operating in RAID 0 for performance or RAID 1 for data redundancy, the LCD status screen will show it all, ensuring you always have accurate and up-to-date information at your fingertips. This feature not only simplifies the process of RAID management but also aids in troubleshooting, allowing for prompt action in case of any issues. By integrating this user-friendly display, the iR2025 once again demonstrates its commitment to marrying advanced technology with superior user experience.





LED indicator



The iR2025 has LED indicators that show drive status visually. You can monitor drive activity, data transfer, and potential issues easily with these LED indicators. The iR2025 helps you to keep track of your drive status and quickly detect any problems, ensuring smooth operation and timely maintenance.

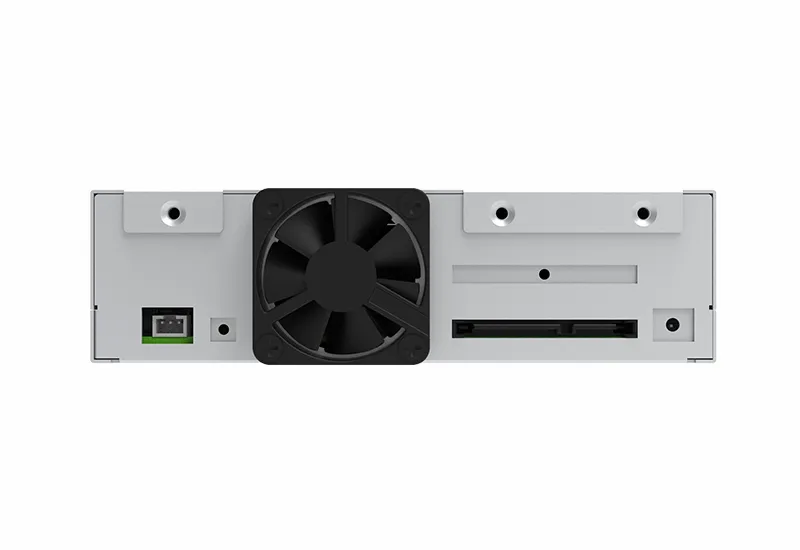

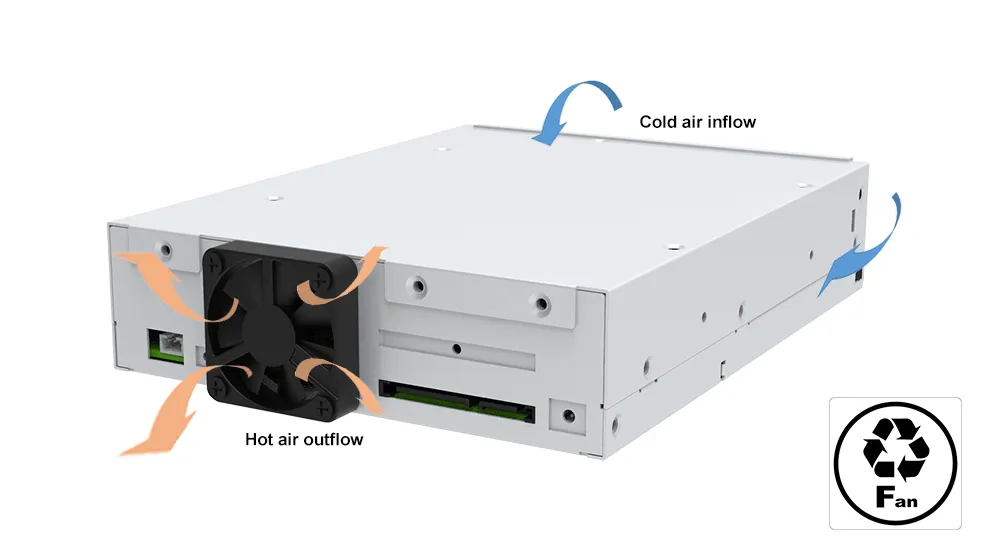

Optimal heat management with MCU controlled silent fan



The iR2025 incorporates a Microcontroller Unit (MCU) controlled heat dissipation system. The MCU intelligently operates a 4-cm silent fan to maintain optimal temperature for your drives, extending their lifespan and ensuring consistent performance.





Advanced overheats alarm buzzer



The iR2025 is equipped with an advanced overheats alarm buzzer that enhances system safety. In the event of overheating, the alarm buzzer provides an audible alert, notifying users about potential issues with the system's temperature. This proactive warning allows for timely intervention to prevent damage and ensure system stability. The advanced overheats alarm buzzer of the iR2025 adds an extra layer of protection, ensuring the reliability and longevity of the storage solution.





Versatility



With its advanced features and compact design, the iR2025 is ideal for installation in a variety of systems including servers, industrial PCs (IPCs), and workstations.



The iR2025 Internal RAID Device can be utilized across various applications





1. Data Centers: The iR2025's high-speed data access and redundant data protection make it ideal for deployment in large-scale data centers where reliable and efficient data storage and management is critical.



2. High-Performance Computing: For systems running complex simulations or data-intensive tasks, the iR2025 can deliver the performance boost and data security required.



3. Network Attached Storage (NAS) Systems: By integrating iR2025 into NAS systems, businesses and individuals can benefit from improved data access speeds and increased redundancy.



4. Industrial PCs (IPCs): In industries like manufacturing, healthcare, or Semiconductor automation, IPCs can utilize the iR2025 for efficient, secure data handling and storage.

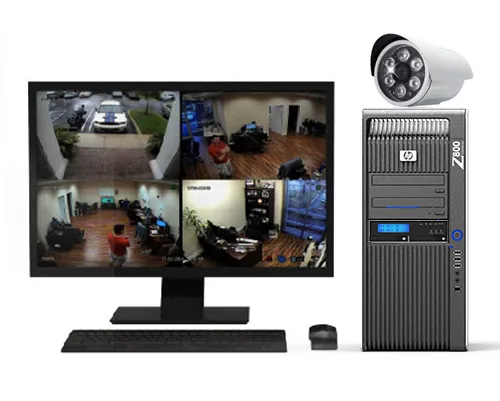

5. Surveillance Systems: Security systems that generate large volumes of video data can leverage the iR2025's storage capabilities, ensuring quick data retrieval and secure backups with its RAID 1 function.



6. Media Editing and Production: With high-speed data access and secure storage, the iR2025 can be a vital tool for professionals working with large media files for editing, rendering, or production.



7. Server Environments: In various server implementations, the iR2025can provide essential data management and backup, along with performance enhancement.



8. Research and Development: For institutions generating and working with large volumes of data, the iR2025 can ensure reliable, high-speed storage and safeguard against data loss.



The iR2025 Internal RAID Device, with its advanced features and compact size, makes it an excellent choice for Industrial PC (IPC) and automation applications.

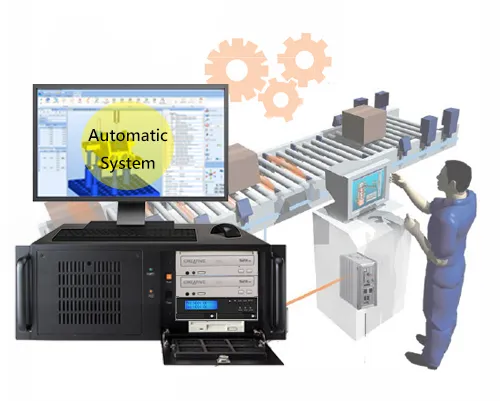

The iR2025 can be an excellent fit for Industrial PC (IPC) automation applications



1. Process Automation: The iR2025 can serve as a reliable data storage and management solution in various process automation scenarios. Whether it's for storing process data, operational logs, or programming and controlling automated machinery, the iR2025's high-speed data access and redundant data protection are invaluable.



2. Manufacturing and Assembly Lines: For automated manufacturing and assembly lines, the iR2025 can be used to store and manage machine data, performance metrics, quality control data, and more. Its RAID 1 function ensures data safety, and RAID 0 configuration offers improved data access speed, vital for real-time control and monitoring.



3. Robotics Control Systems: In robotics applications, where large volumes of data are generated and need to be stored securely and accessed swiftly, the iR2025 is an ideal choice. It can be used to store control algorithms, machine learning models, sensor data, and operational logs.



4. Data Acquisition Systems: In industrial applications where real-time data acquisition and processing are crucial, such as in predictive maintenance or quality control, the iR2025 provides high-speed data access and secure data storage.



5. SCADA Systems: The iR2025 can be an essential component of Supervisory Control and Data Acquisition (SCADA) systems, used for storing operational data, logs, and control parameters. The device's RAID functions ensure that the stored data is always secure and readily available.



6. Industrial IoT (IIoT) Devices: For IIoT applications, the iR2025 can be used to store and manage data collected from a multitude of IoT sensors and devices. Its high-speed data access and redundancy features make it an optimal choice for these data-intensive environments.



By deploying the iR2025 in IPC and automation environments, industries can enjoy reliable, secure, and high-speed data management, ensuring efficient operations and aiding in informed decision-making.

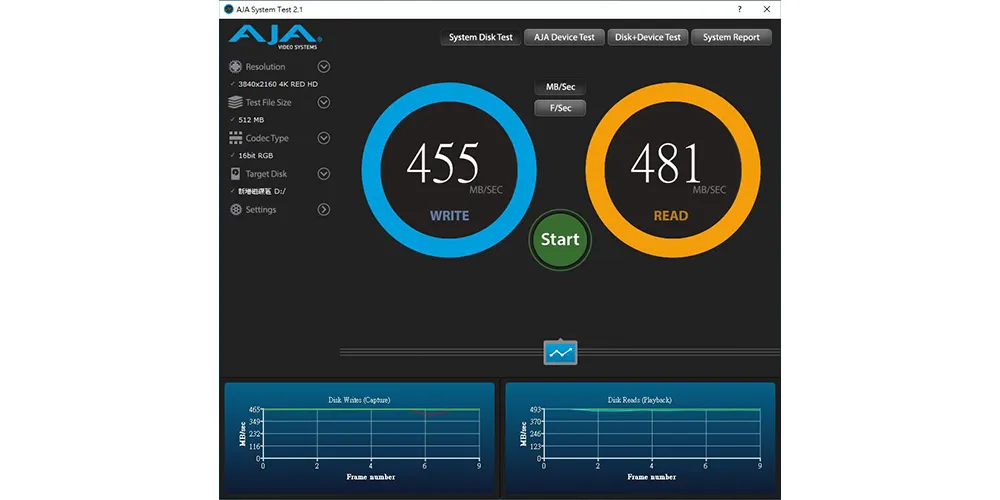

Performance test result for reference. The test result will vary depend on the test environment.

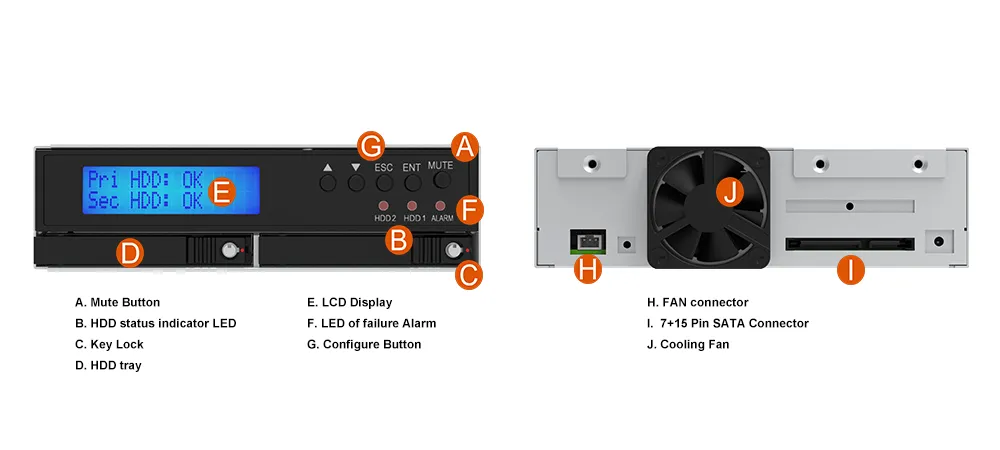

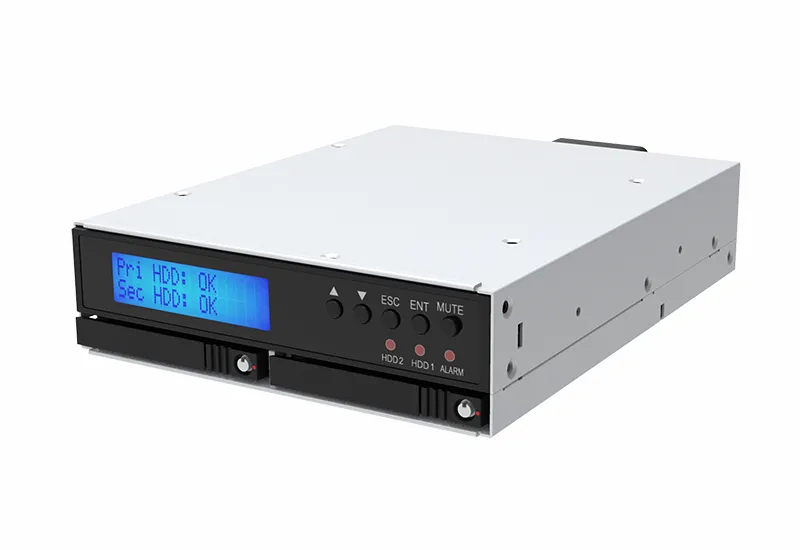

Product View

Specification



Model No iR2025
Interfaces 1 x SATA III (6Gbps) Ports
Compatible Drives 2 x 2.5" SATA III (6Gbps) HDD/SSD (9.5mm)
Storage Level RAID 1 , 0
System Monitoring Fan Failure / Overheat
Operating System Windows, Linux
Function Control
Interface
Panel RAID Mode Button Setting, GUI (Windows Only)
Cooling System 4 cm Low noise fan
Electrical and
Operating
Requirements
* Line voltage: 12V + 5V DC
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% non-condensing
Dimension & Weight 146(W)x 42(H) x 198(L) mm
Product Code iR2025
EAN:
UPC:

Carton 10 pcs per carton
Package Accessories *iR2025
*SATA Cable
*Accessory Kit-for Tray
*Accessory Kit-for Case
*Quick installation guide
