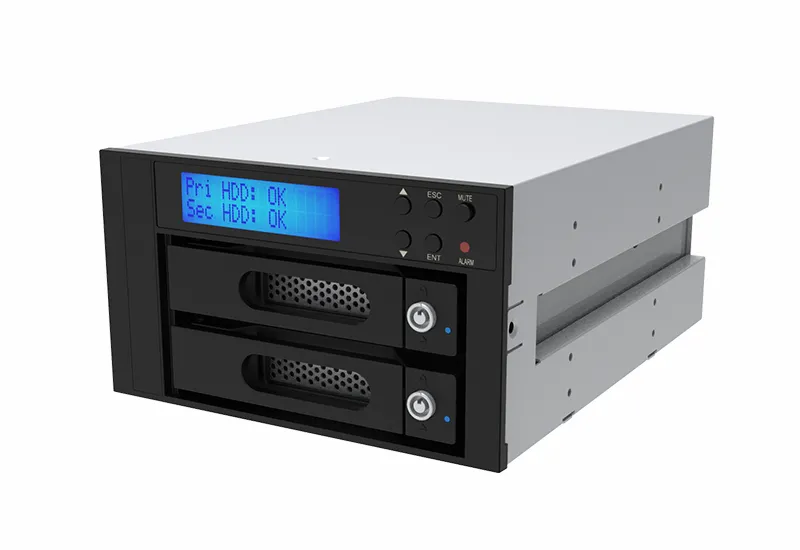

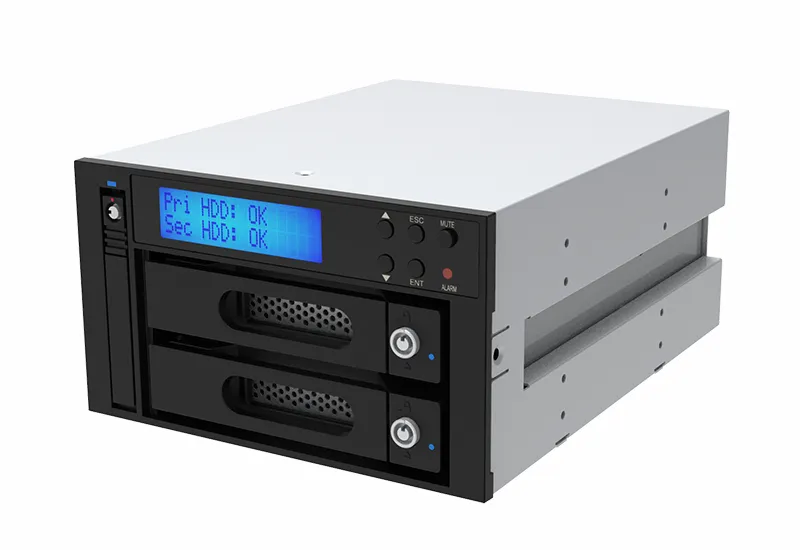

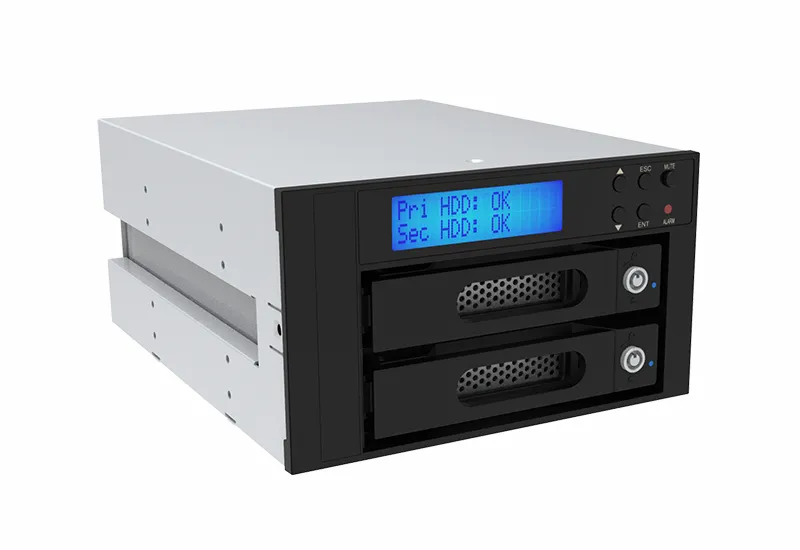

iR2822(2 CD-ROM bay 2.5"-3.5” Internal RAID Module)
Supports 2 x 3.5"-2.5" HDD/SSD RAID 0/1, tray with key lock
Panel RAID Mode Button Setting, LCD display and LED indicators for system monitoring during operation
iR2822 provides RAID mode button setting, it built-in LCD & LED display functions

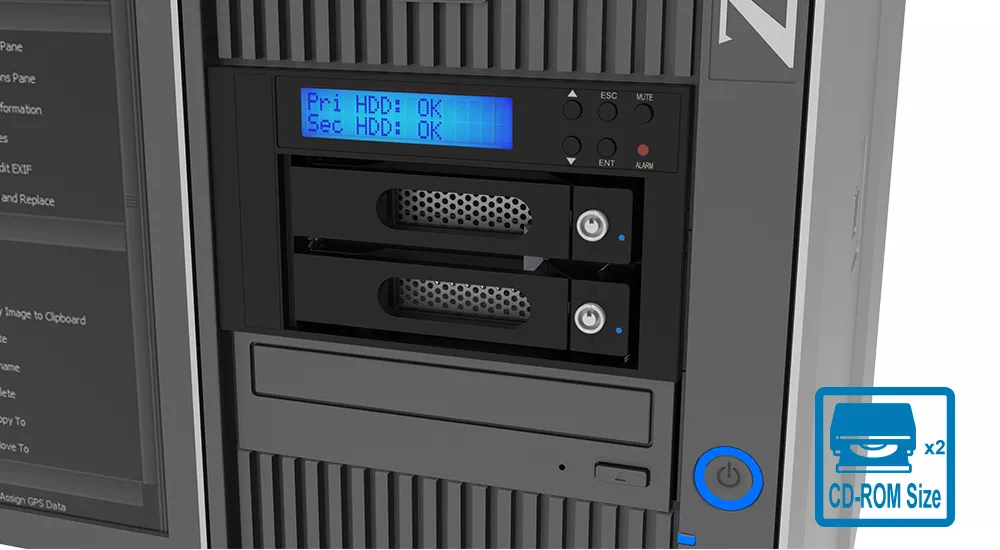

The iR2822 supports the fault tolerant mode of hot-swappable hard disks under RAID 1 status. iR2822 provides RAID mode button setting, it built-in LCD & LED display functions that can monitor and display the hard disk status. The iR2822 supports 2 x 5.25” optical disc drive size, this internal storage module can perfectly match servers, industrial computers, and workstations.

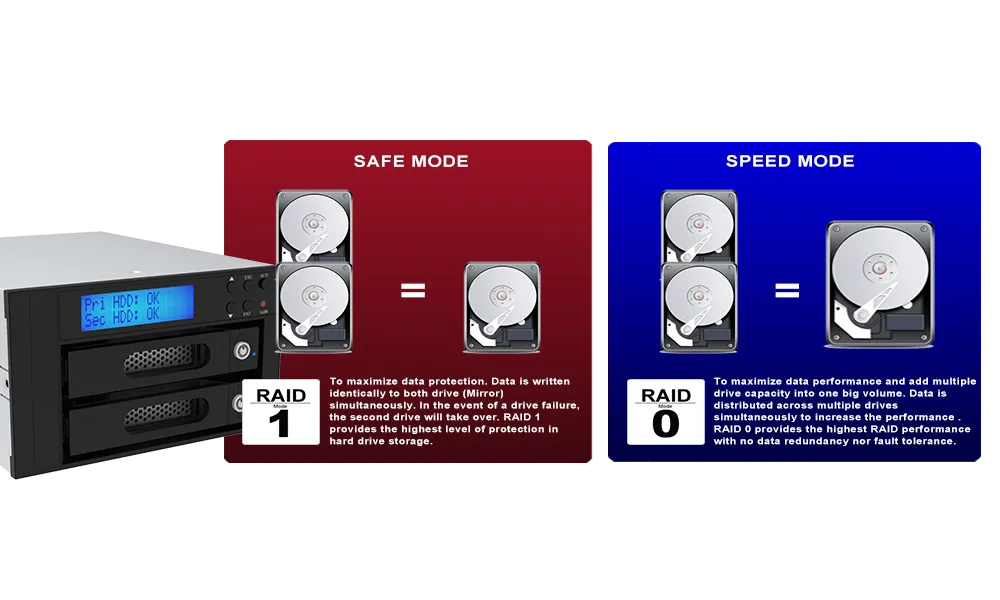

Choose the better RAID mode and disk for the application
RAID 1 mode, the data is mirroring between two disks. For fields which require high data security, it is the most appropriate storage mode.
RAID 0 mode, the data transfer performance will faster and the capacity will be twice than one disk. It can accelerate the access speed of data, but it is not secure.
Solid State Disk (SSD) provides faster transmission, anti-vibration, and is power-saving. For specific computer platforms, it is a very good choice.
The 2.5" hard disk is more advantageous than the SSD while having the same capacity.
High Reliability or High Performance
iR2822 has two RAID modes - RAID 1 and RAID 0

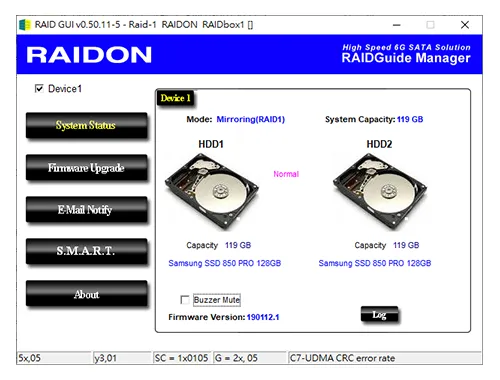

Provides the monitoring Utility to check the status easily
Not only comes with the LCD monitor, iR2822 also provides one Utility for Windows users. With the Utility, user can know the RAID status of iR2822 such like the RAID mode be used, disk model number and the capacity. Evenbetter, if the disk is be removed or failure, it can send the notification email to user automatically. It allows users to do some respon for the dailure as soon as possible to remedy the situation.

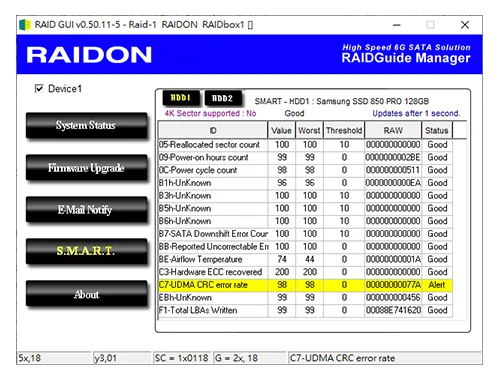

Read the disk S.M.A.R.T. information from Utility directly
The Utility we provided now can read the disk S.M.A.R.T. information. Just open the Utility (RAID GUI) and click the "S.M.A.R.T." button, then you can check the disk status. It allows user to replace the disk before it is failure.

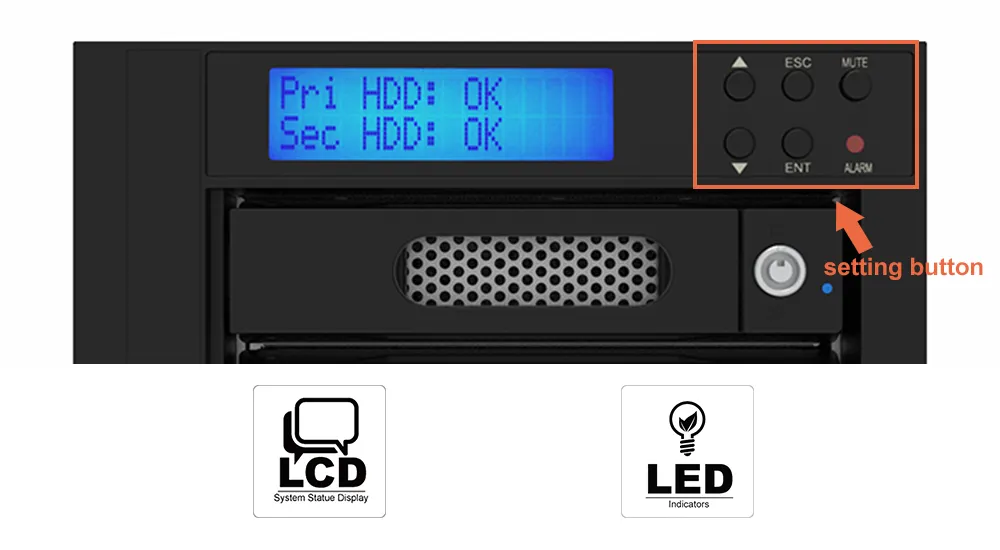

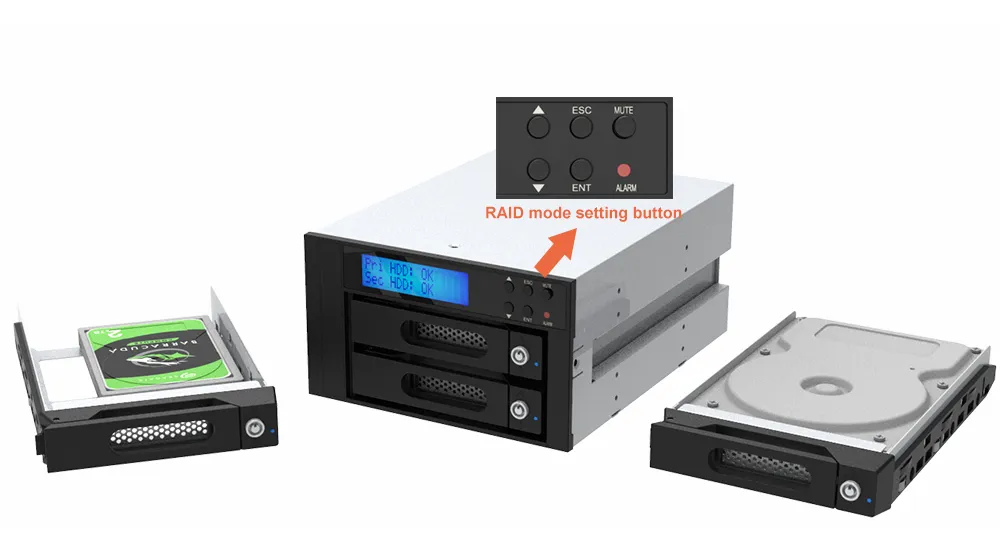

Provides RAID mode button setting, LCD & LED user-friendly display

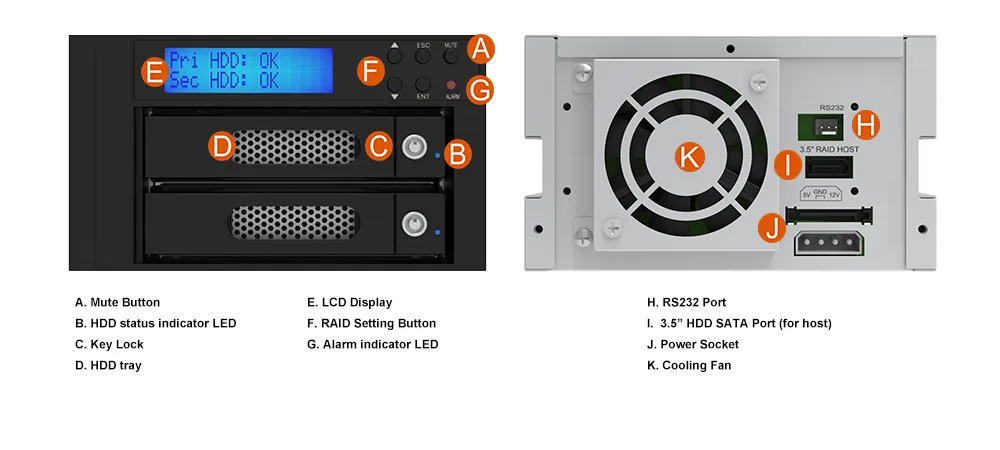

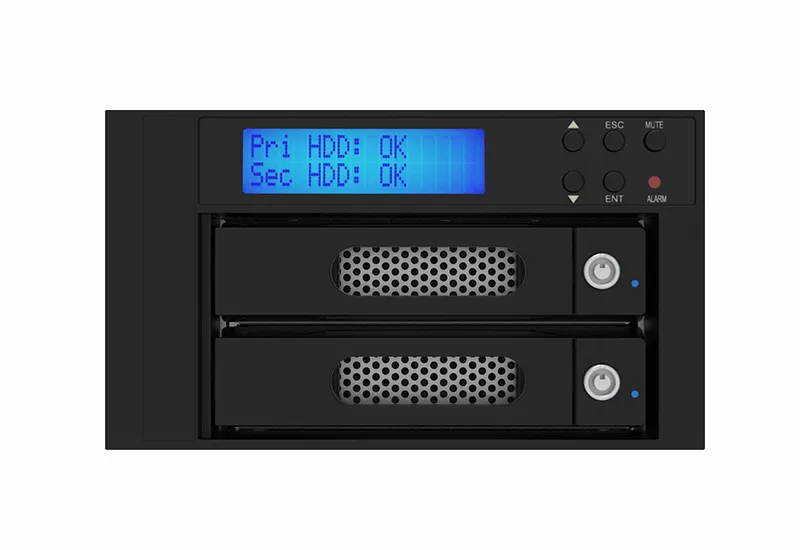

RAIDON iR2822 provides RAID mode button setting, and is equipped with clear readable LCD display and LED indicators for system monitoring during operation so users can easily grasp the status of the system at all times. Moreover, it comes with visual and audio alarms whenever failure occurs.

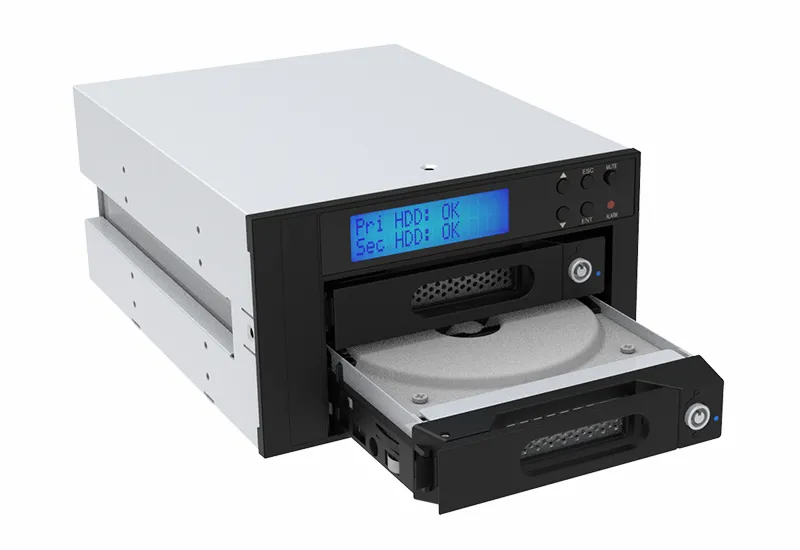

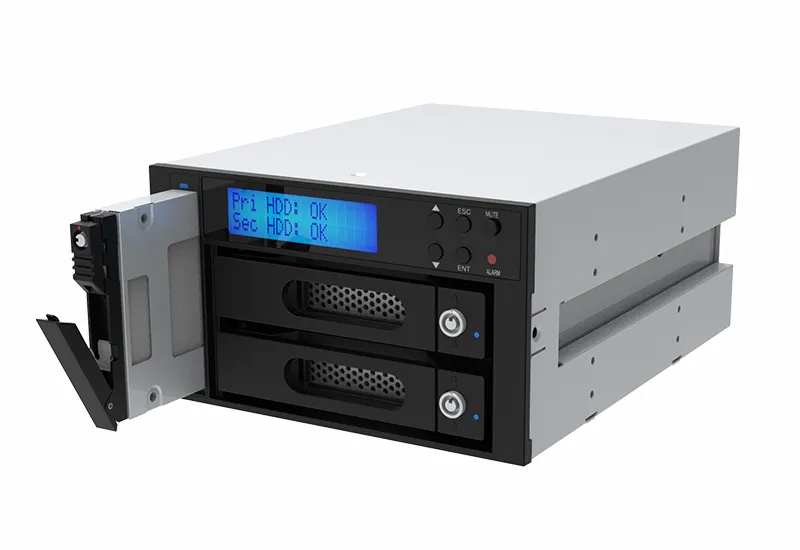

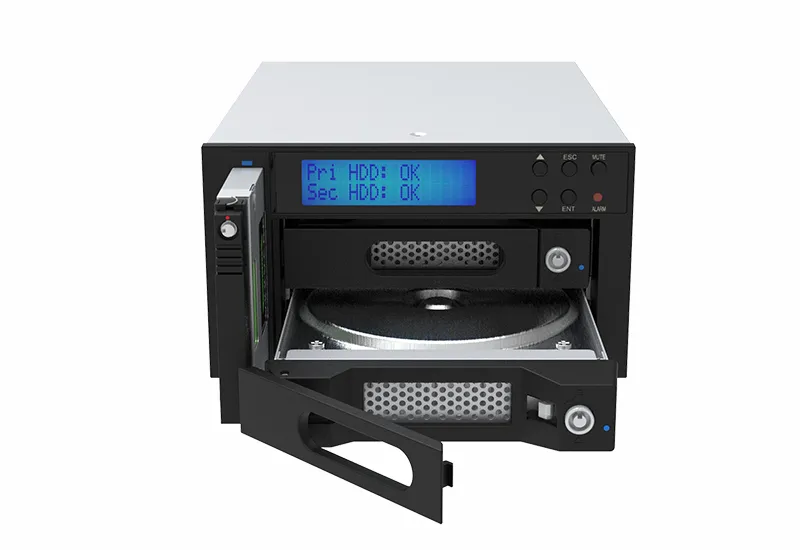

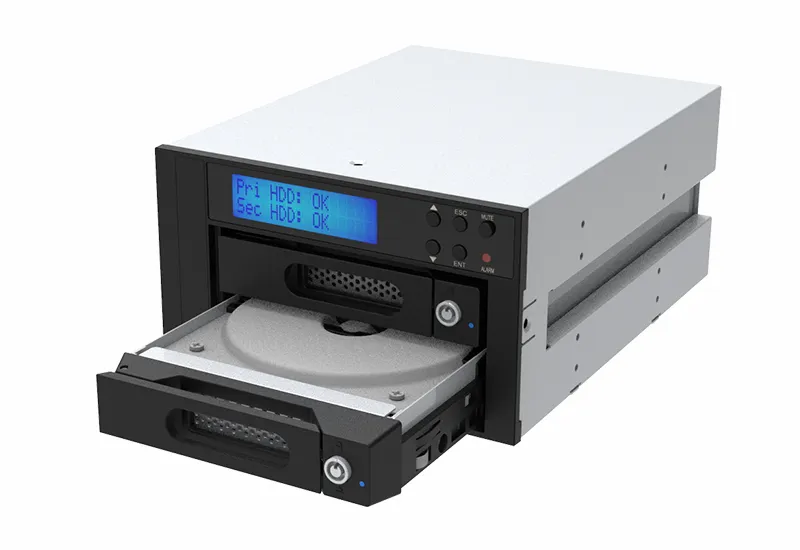

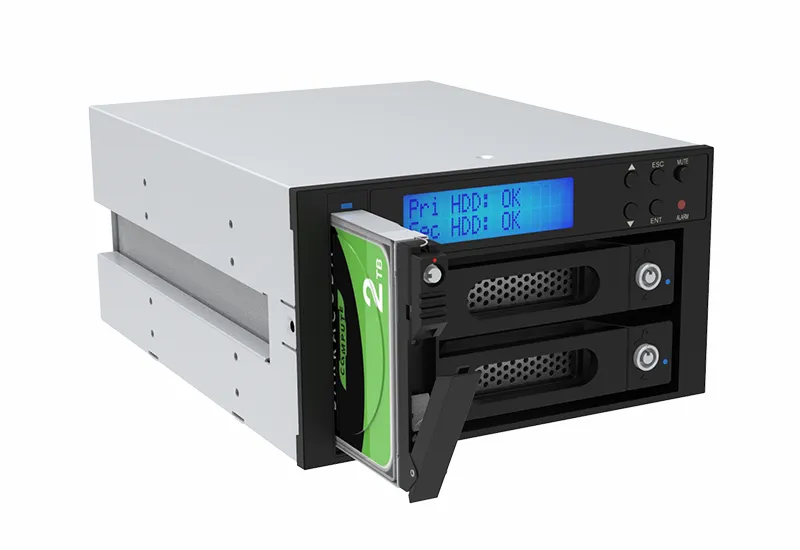

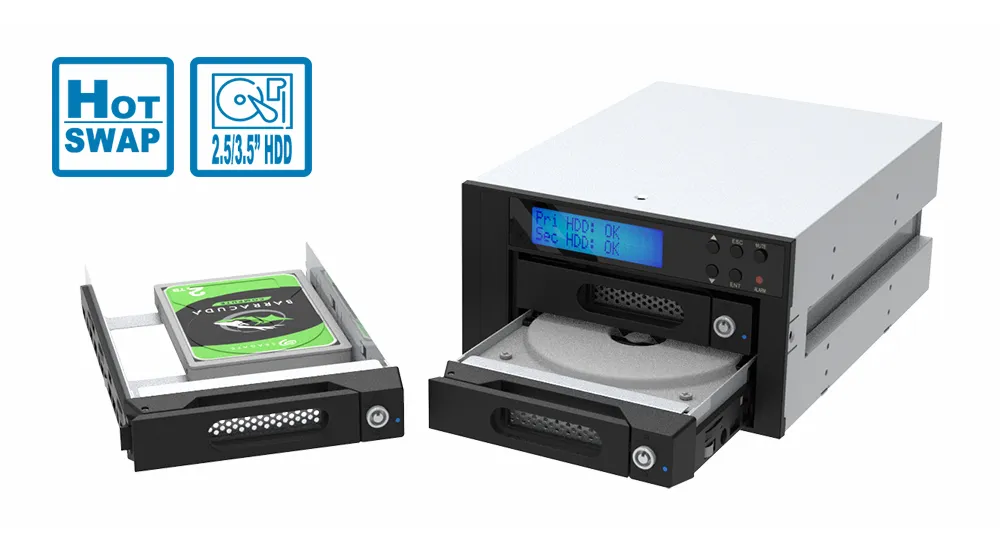

Easy-to-use disk Tray module
RAIDON's easy-to-use disk tray module comes with a key lock and secure the disk with screws. User can buy several disk tray modules and secured the disks first, once there is one disk in iR2822 is failure, just replace the disk directly. It can greatly reduce the wait time for system maintenance.
2.5"-3.5" HDD Tray provides a key lock, which will not be easily extracted, increasing data security.

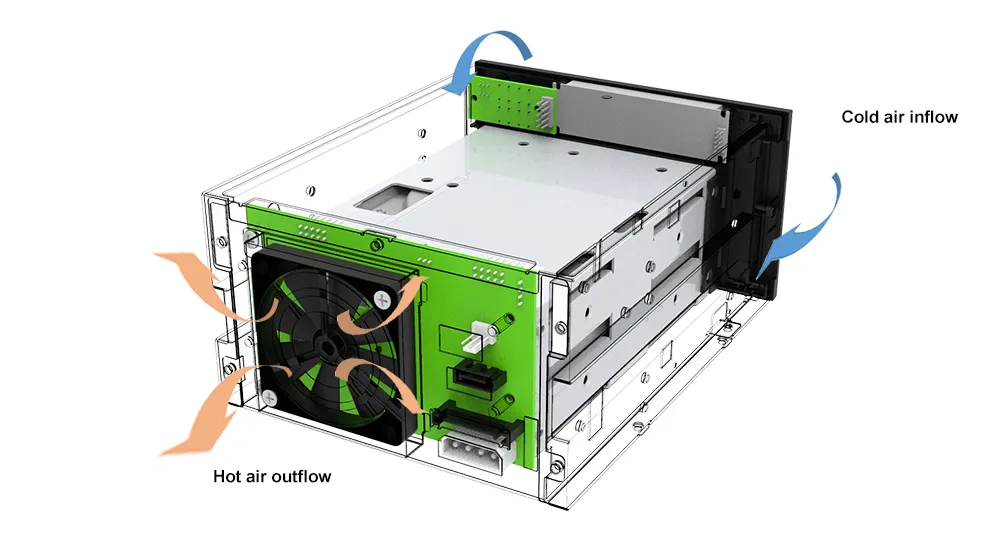

Good heat dissipation can extend the life of the disk

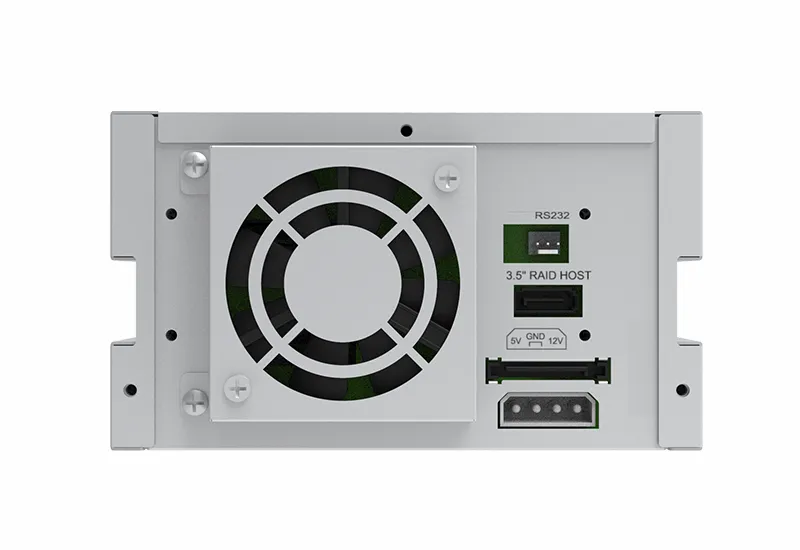

The iR2822 is equipped with a 6-cm silent fan, by constantly creating air flow, heat generated by the high-speed rotation of the hard disk can be easily taken away. This maintains the normal operating temperature of the hard disk at all times. A longer life of your hard disk will properly protect your data.

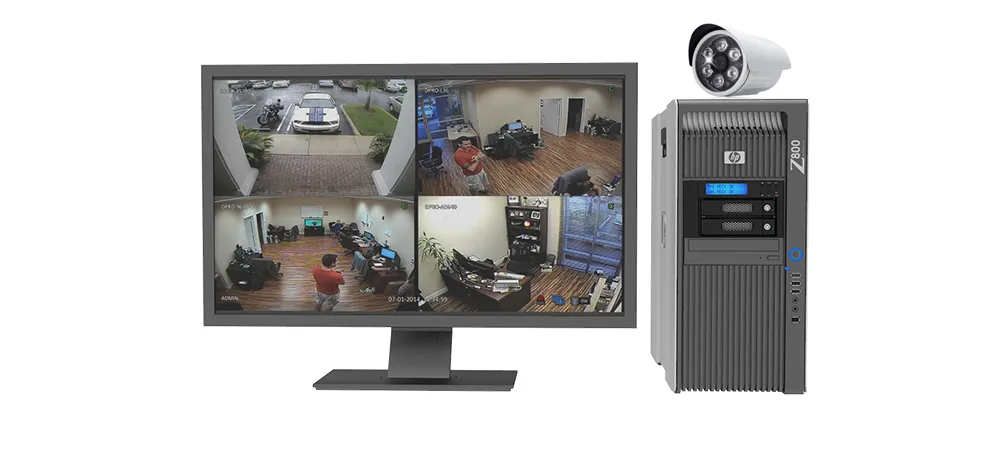

Let The DVR, NVR Device To Install and Use The iR2822 Easily
Take advantage of the durable HDD disk to install your DVR, NVR operating system and use two hard disks with the big capacity and RAID 1 to protect the long-term data. You can even use the iR2822’s hot swapping feature to extract the 2.5”-3.5” hard disk periodically and to save it in the data center, then to put in a new hard disk so the iR2822 can continuously perform instant backup.

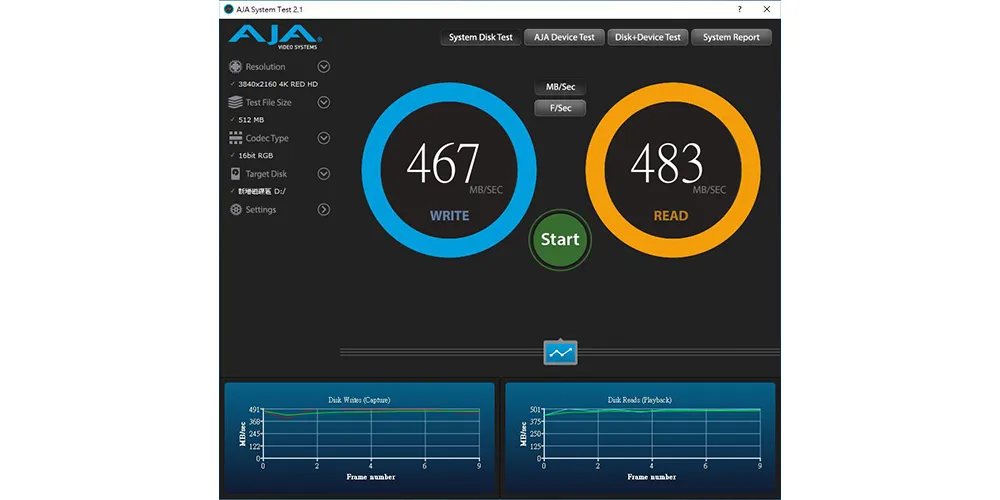

Performance test result for reference. The test result will vary depend on the test environment.
|1 x SATA III (6 Gbps)
|2 x 2.5"/3.5" SATA III (6.0 Gbits) HDD/SSD
|RAID 1 or RAID 0
|GUI (Windows Only)
|* Line voltage: 12V + 5V DC
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% noncondensing
|Size and Weight
|148 mm (W) x 84 mm (H) x 202 mm (D)
|8 pcs per carton
|* iR2822 x 1
* SATA Cable
* Accessory kit
* Quick Installation Guide
|GUI Software for Windows
