InTANK Series

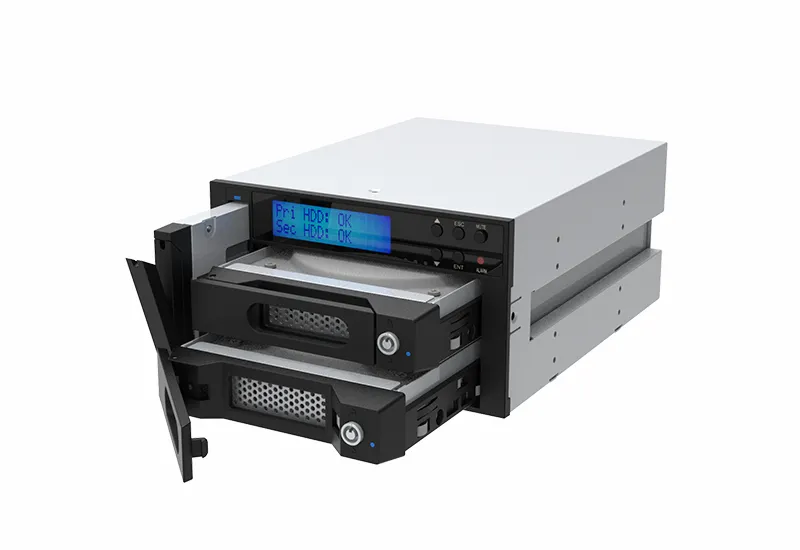

iR8823 (2 CD-ROM Bay RAID 0/1 + JBOD Internal RAID Module)



Solution for Data Security and Data on the Move



Supports 2 x 3.5"-2.5" HDD/SSD RAID 0/1 + 1 x M.2 SATA SSD JBOD, 3.5" tray with key lock





Panel RAID Mode Button Setting, LCD display and LED indicators for system monitoring during operation



Features



RAID + JBOD, provides more applications

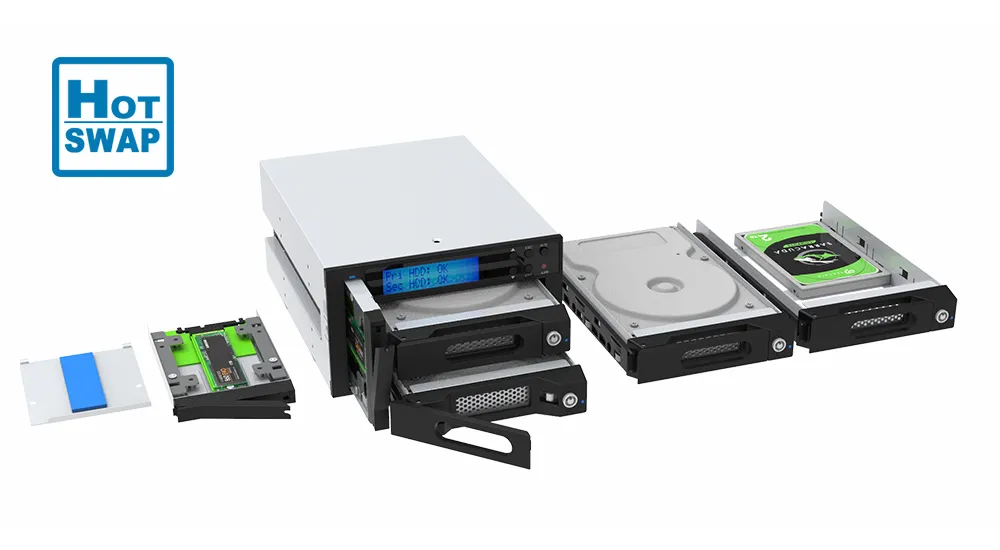

The iR8823 supports the fault tolerant mode of hot-swappable hard disks under RAID 1 status. iR8823 provides RAID mode button setting, it built-in LCD & LED display functions that can monitor and display the hard disk status. The iR8823 supports 2 x 5.25”optical disc drive size, this internal storage module can perfectly match servers, industrial computers, and workstations.





iR8823 can use two 3.5" or 2.5" SATA disk to set one RAID 1 or RAID 0 group, and provides one additional M.2 SATA SSD as independence disk ( JBOD ) for diversify usage. It is the ideal Hardware RAID module for Data Security and Data on the Move.

Choose the better RAID mode and disk for the application



RAID 1 mode, the data is mirroring between two disks. For fields which require high data security, it is the most appropriate storage mode.

RAID 0 mode, the data transfer performance will faster and the capacity will be twice than one disk. It can accelerate the access speed of data, but it is not secure.


M.2 SATA SSD provides faster transmission, anti-vibration, and is power-saving. For specific computer platforms, it is a very good choice.






High Reliability or High Performance


iR8823 has two RAID modes - RAID 1 and RAID 0

Provides the monitoring Utility to check the status easily


Not only comes with the LCD monitor, iR8823 also provides one Utility for Windows users. With the Utility, user can know the RAID status of iR8823 such like the RAID mode be used, disk model number and the capacity. Evenbetter, if the disk is be removed or failure, it can send the notification email to user automatically. It allows users to do some respon for the dailure as soon as possible to remedy the situation.

Read the disk S.M.A.R.T. information from Utility directly



The Utility we provided now can read the disk S.M.A.R.T. information. Just open the Utility (RAID GUI) and click the "S.M.A.R.T." button, then you can check the disk status. It allows user to replace the disk before it is failure.



>> Learn more about it

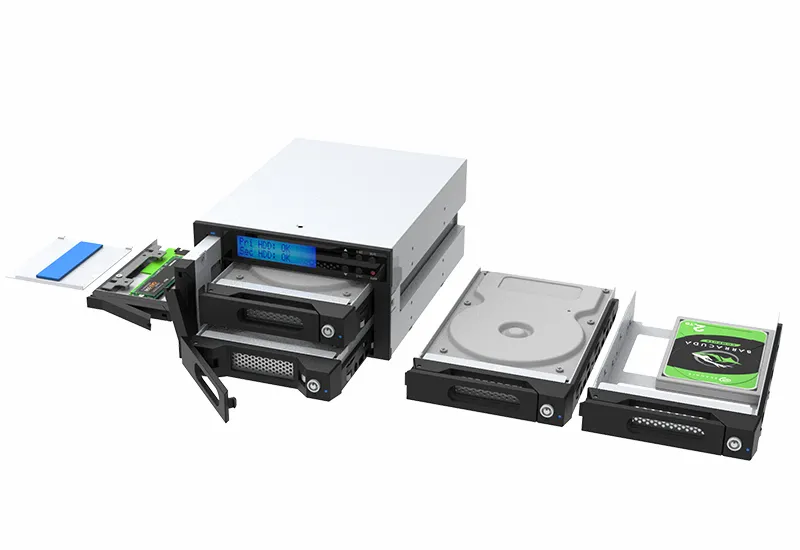

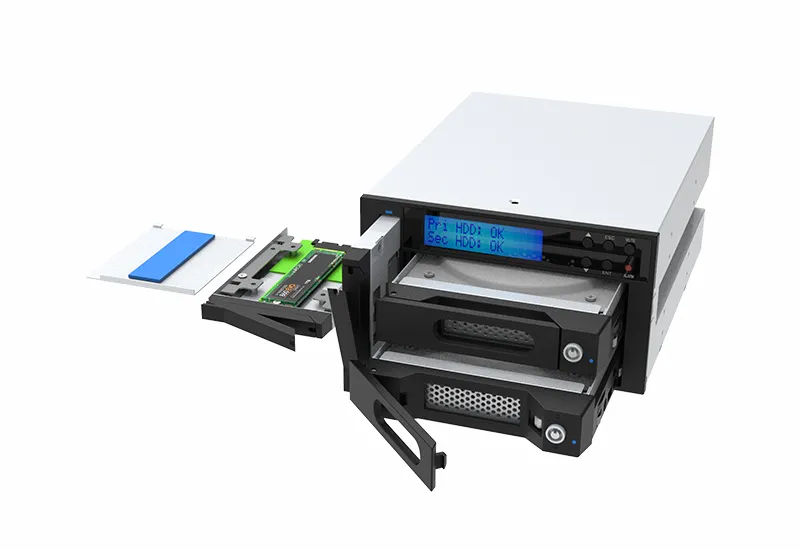

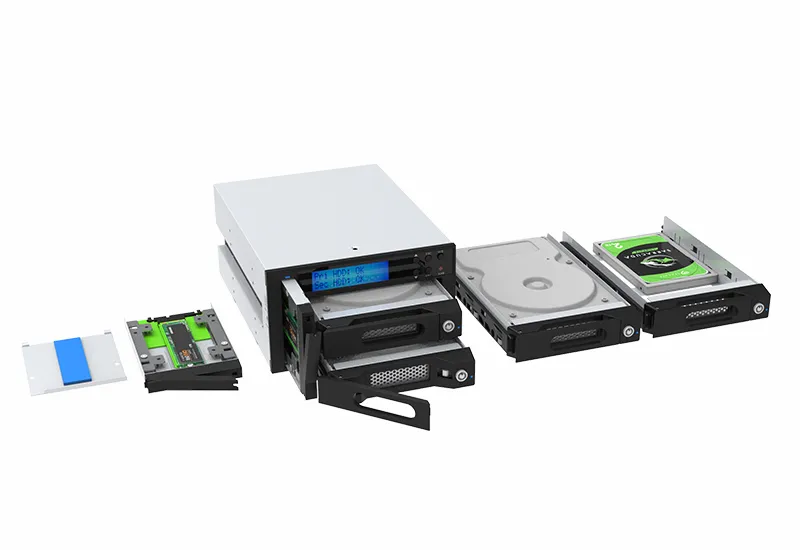

Easy-to-use disk Tray module



RAIDON's easy-to-use disk tray module comes with a key lock and secure the disk with screws. User can buy several disk tray modules and secured the disks first, once there is one disk in iR2823 is failure, just replace the disk directly. It can greatly reduce the wait time for system maintenance.



2.5"-3.5" HDD Tray provides a key lock, which will not be easily extracted, increasing data security.

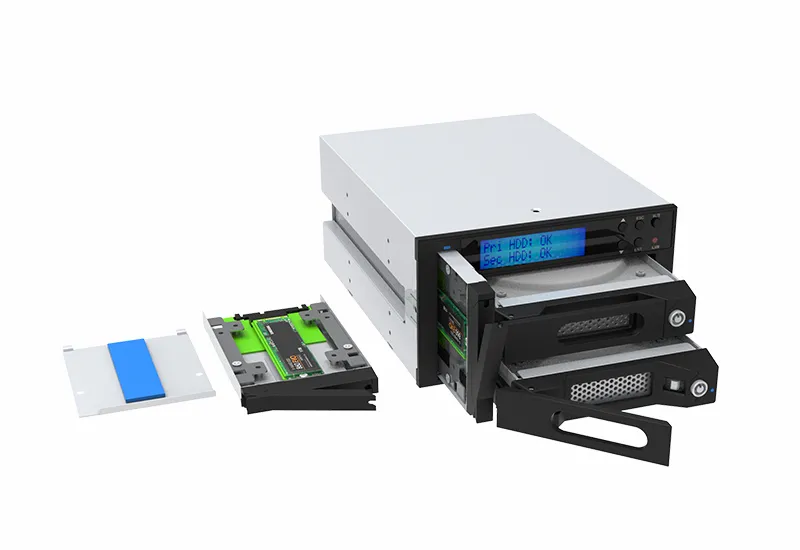

In addition, the M.2 SATA SSD tray be used without screws when installing the HDD, the newly designed M.2 SATA SSD tray can support the fast data exchange of our 2.5" series products.

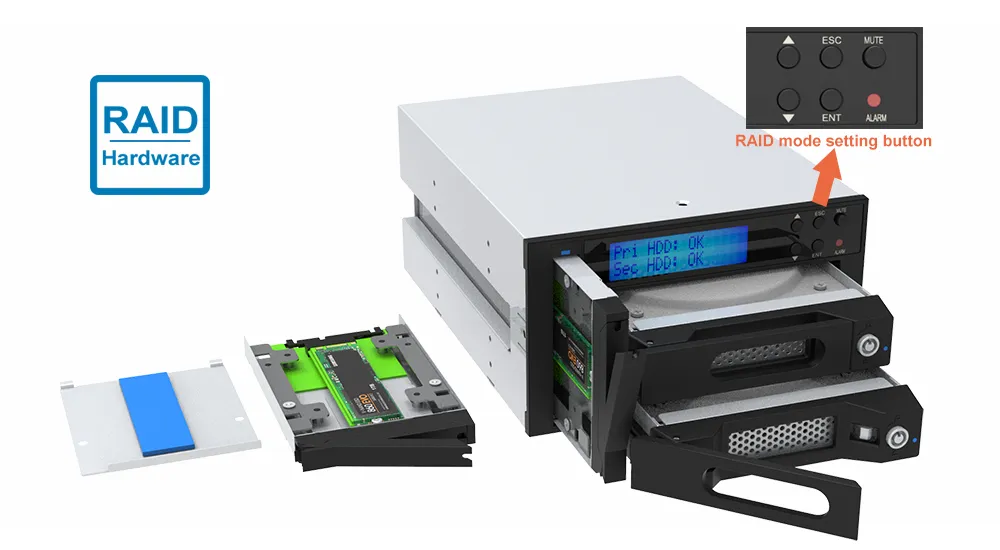

Provides RAID mode button setting, LCD & LED user-friendly display



RAIDON iR8823 provides RAID mode button setting, and is equipped with clear readable LCD display and LED indicators for system monitoring during operation so users can easily grasp the status of the system at all times. Moreover, it comes with visual and audio alarms whenever failure occurs.

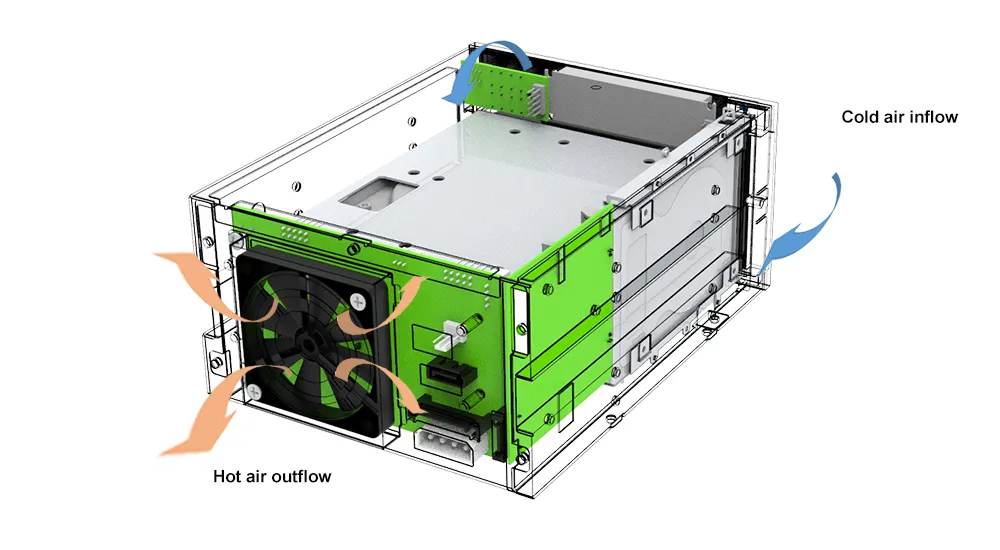

Good heat dissipation can extend the life of the disk



The iR8823 is equipped with a 6-cm silent fan, by constantly creating air flow, heat generated by the high-speed rotation of the hard disk can be easily taken away. This maintains the normal operating temperature of the hard disk at all times. A longer life of your hard disk will properly protect your data.

Let the iR8823 to protect your important data



1. User can use M.2 SATA SSD at the additional M.2 SATA SSD place as booting disk to speed up the system performance. And use the RAID 1 group as data disk to storage the important data.


2. User can use the RAID 1 group as booting disk to keep the system running 24/7 and use the additional M.2 SATA SSD as remote backup disk.

JBOD Data On the Move function


1. The additional M.2 SATA SSD can be taken out at any time for data exchangewith other machines, and the exchanged data can be backed up to RAID 1 to ensuredata security.


2. The additional M.2 SATA SSD can back up the data in the RAID at any time(through third-party software) and store the hard disk separately, which is equivalent todoing remote backup of the data in the RAID.


3. The additional M.2 SATA SSD can be used as a replacement hard disk forrebuilding at any time when one of the RAID hard disks is damaged.

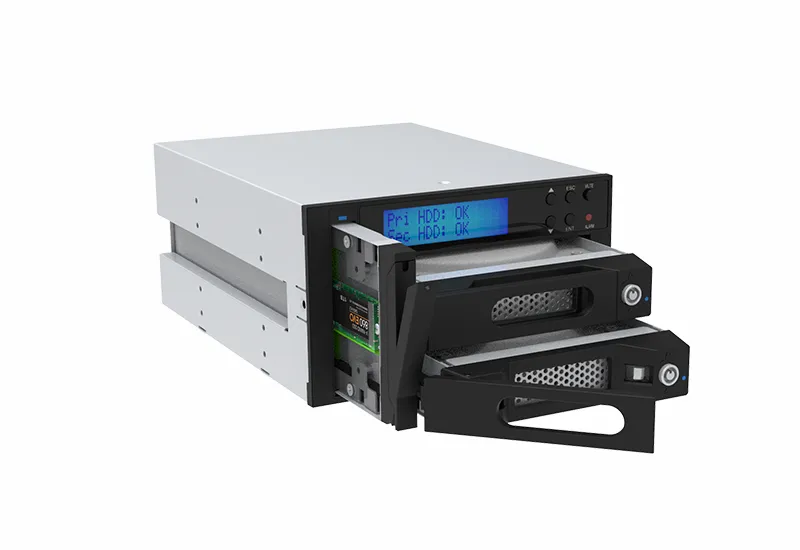

Product View

Specification



Model No iR8823
Interfaces 2 x SATA III (6 Gbps)
(1 x 3.5"-2.5" HDD/SSD RAID,1 x M.2 SATA SSD JBOD)
Compatible Drive RAID 1 or RAID 0 ( 2.5"/3.5" SATA HDD/SSD ) +
Independent volume ( M.2 SATA SSD (2242/2260/2280))
Storage Mode RAID 1 or RAID 0 ( 3.5" RAID Module ) + Independent volume( M.2 SATA SSD )
Operating System Windows, Linux
Function Control
Interface
GUI (Windows Only)
Electrical and
Operating
Requirements
* Line voltage: 12V + 5V DC
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% noncondensing
Size and Weight 148 mm (W) x 84 mm (H) x 202 mm (D)

Product Code EAN:
UPC:
Carton 8 pcs per carton
Package Accessories * iR8823 x 1
* SATA Cable x 2
* Accessory kit
* Quick Installation Guide



iR8823 Download

Product
Datasheet
QM
UM
CE & FCC
other
iR8823
GUI Software for Windows

iR8823 Question & Answer

  • Q1Upgrading Your System: Integrating iR8823 with Legacy RAID 1 Hard Drives.
  • Q2Upgrading from a Legacy RAID Device to iR8823 with New Hard Drives.
  • Q3What causes RAIDbox to be unable to recognize my non-brand-new hard drive?


iR8823 HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
iR8823EmBestorM.2 SATA SSD EC3M4M-064GCHDRI1464GB
iR8823EmBestorM.2 SATA SSD EC3M4M-128GCHDRI24128GB
